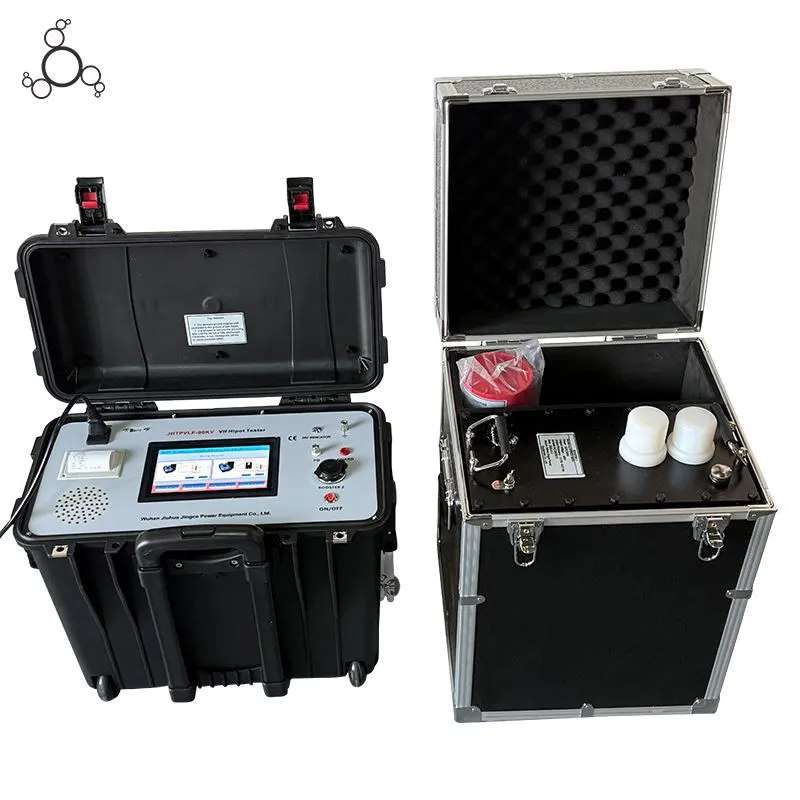

Lub VLF Tan Delta PD tester tau txais kev hloov pauv digital zaus, kev tswj hwm microcontroller, thiab ua haujlwm siab rau kev txhawb nqa, txo qhov voltage, ntsuas, thiab tiv thaiv. Vim nws txoj kev tsim hluav taws xob tag nrho, nws yog qhov me me thiab lub teeb hauv qhov hnyav. Nws siv lub vijtsam loj xim kov lub vijtsam, uas yog qhov tseeb thiab nkag siab, yooj yim rau kev khiav lag luam, thiab nthuav tawm cov ntawv tawm suab. Tus qauv tsim ua tau raws li lub teb chaws tus qauv ntawm General technology Conditions rau Ultra Low Frequency thiab High Voltage Generators.
KhoomTaw qhia
1.Rau ultra-frequencies tsawg nrog qhov ntsuas hluav taws xob tsawg dua lossis sib npaug ntawm 60kV, ib qho kev sib txuas ib leeg (ib qho kev txhawb nqa) yog siv; Ultra tsawg zaus ntau dua 60kV txais yuav cov qauv qauv (ob lub boosters txuas nrog hauv series), txo qhov hnyav tag nrho thiab txhim kho cov load-cov kabmob muaj peev xwm. Ntxiv mus, ob qho tib si boosters tuaj yeem siv sib cais, ua tiav ib lub tshuab nrog ntau lub zog.
2.Cov ntaub ntawv tam sim no thiab qhov hluav taws xob tau ncaj qha los ntawm qhov siab -voltage sab, yog li cov ntaub ntawv raug.
3.Intelligent kev tiv thaiv muaj nuj nqi: Tsis muaj teeb tsa tam sim no thiab voltage tiv thaiv qhov tseem ceeb, qhov tsawg zaus vlf tuaj yeem xam overvoltage thiab overcurrent tiv thaiv qhov tseem ceeb raws li qhov loj ntawm tus qauv capacitance thiab qhov ntsuas voltage tus nqi. Nws tseem tuaj yeem muab kev tiv thaiv tiv thaiv hluav taws xob thiab kev hloov pauv tam sim no, yog li nws tuaj yeem ntes cov xwm txheej tawm. Lub sijhawm tiv thaiv kev ua haujlwm tsawg dua 20ms.
4.Siv 150kV siab -voltage kab tso zis, muaj kev nyab xeeb thiab txhim khu kev qha.
5.Vim yog siv lub kaw - voj tsis zoo tawm tswv yim tswj Circuit Court, cov zis tsis muaj peev xwm nce.
6.Cov khoom tshiab tau ntxiv DC, dielectric poob, thiab ib feem ntawm qhov kev ntsuas tawm, uas tuaj yeem ntsuas qhov dielectric poob, qhov muaj peev xwm, kev tiv thaiv hluav taws xob, thiab ib nrab tawm ntawm cov khoom kuaj thaum lub sij hawm tiv thaiv hluav taws xob.
Khoom Parameter
|
Rated voltage |
Thauj khoom |
Cov duab |
Cov khoom tsim, qhov hnyav, thiab kev siv ntau yam |
|
30kv ua (Peak) |
Tsis siv neeg zaus 0.1Hz-0.01Hz Peev Xwm: Tsawg dua lossis sib npaug li 10 µF |
|
Controller: 4 kg Qhov hnyav: 25 kg Siv rau qhov ntsuas hluav taws xob tiv thaiv cov kab hluav taws xob thiab cov motors txog li 10KV |
|
40 kv (Peak) |
Tsis siv neeg zaus 0.1Hz-0.01Hz Peev Xwm: Tsawg dua lossis sib npaug li 10 µF |
|
Controller: 4 kg Qhov hnyav: 25 kg Siv rau qhov ntsuas hluav taws xob tiv thaiv cov kab hluav taws xob thiab cov motors txog li 10KV |
|
50kv ua (Peak) |
Tsis siv neeg zaus 0.1Hz-0.01Hz Peev Xwm: Tsawg dua lossis sib npaug li 10 µF |
|
Controller: 4 kg Qhov hnyav: 45 kg Siv rau qhov ntsuas hluav taws xob tiv thaiv cov kab hluav taws xob thiab cov motors txog li 15KV |
|
60kv ua (Peak) |
Tsis siv neeg zaus 0.1Hz-0.01Hz Peev Xwm: Tsawg dua lossis sib npaug li 5 µF |
|
Controller: 4 kg Qhov hnyav: 45 kg Siv rau qhov ntsuas hluav taws xob tiv thaiv cov kab hluav taws xob thiab cov motors txog li 25KV |
|
80kv ua (Peak) |
Tsis siv neeg zaus 0.1Hz-0.01Hz Capacity: ≤ 10 µ F(≤50KV),≦4µF(>50kV) |
|
Controller: 4 kg Lub cev muaj zog 1: 40KV Booster 2:40 KV Siv rau qhov ntsuas hluav taws xob tiv thaiv cov kab hluav taws xob thiab cov motors txog li 35KV |
|
30 KV 40 kV 50 kV 60 kv (Integrated Unit) |
Tsis siv neeg zaus 0.1Hz-0.01Hz Peev Xwm: Tsawg dua lossis sib npaug li 10 µF (tsawg dua lossis sib npaug rau 5µF @ 60KV) |
|
Luj: 40kg Qhov Loj: 400 * 300 × 500 (mm) Lub hom phiaj ntawm txhua yam khoom tshwj xeeb yog tib yam li saum toj no |

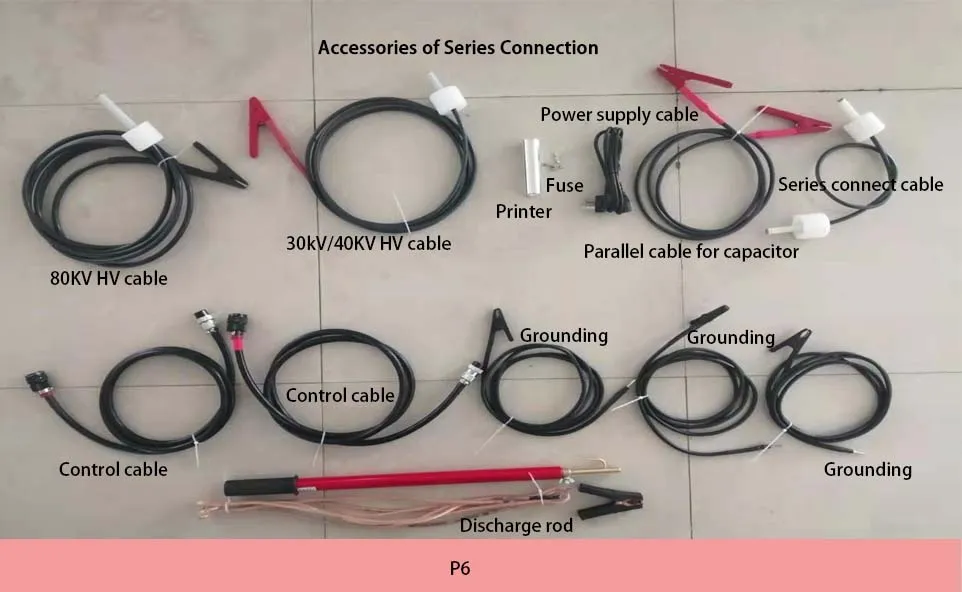

Khoom Accessories
|
Sr. nr |
Kev piav qhia |
Ntau |
|
|
1 |

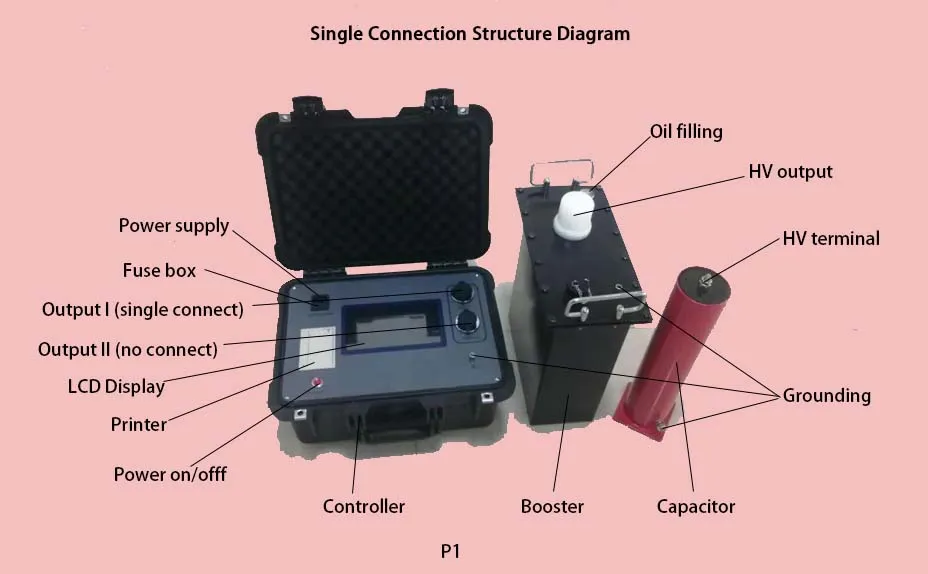

Control unit |
1 |
chav tsev |
|
2 |
Booster |
2 |
chav tsev |
|
3 |
HV Txuas Cable |
1 |
chav tsev |
|
4 |
LV txuas cable |
1 |
chav tsev |
|
5 |
Series kev twb kev txuas cable |
1 |
chav tsev |
|
6 |
Fais fab mov cable |
1 |
chav tsev |
|
7 |
Tshem tawm rod |
1 |
chav tsev |
|
8 |
Ntiaj teb kab |
2 |
chav tsev |
|
9 |
Capacitor, 0.04μF |
1 |
chav tsev |
|
10 |
Luam ntawv |
2 |
chav tsev |
|
11 |
Fuse |
2 |
chav tsev |
|
12 |
Maunal |
1 |
chav tsev |
|
13 |
Calibration Report |
1 |
chav tsev |
