Tus yuam sij rau kev xaiv lub transformer tester yog nyob rau hauv kev sib piv nws rau tej yam uas yuav tsum tau ua thiab daim ntawv thov scenarios. Ntau hom kev ntsuas yog tsim los rau cov khoom kuaj tshwj xeeb, thiab kev xaiv tsis raug yuav ua rau cov ntaub ntawv tsis raug, kev ua haujlwm tsis zoo, lossis muaj kev nyab xeeb. Cov hauv qab no yog cov lus qhia rau kev xaiv kom raug raws li cov kev xav tau ua haujlwm:
Xaiv los ntawm Core Test Functions
Ntsuas Winding DC Resistance → Xaiv "Transformer DC Resistance Tester"
Cov xwm txheej siv tau: Tshawb xyuas winding vuam zoo, kais hloov pauv kev sib cuag, thiab txiav txim siab inter-tig luv luv circuits.
Kev xaiv tseem ceeb Parameter:
Kev ntsuas tam sim no: Rau cov hluav taws xob loj loj, nws raug nquahu kom xaiv qhov tam sim no tsis tu ncua ntawm 10A lossis siab dua kom tsis txhob muaj qhov ntsuas tsis ruaj khov vim qhov tsis txaus tam sim no.
Magnetic Aid Function: Ua kom luv luv lub sijhawm them rau tsib -limb core lossis delta- txuas windings.
Simultaneous Measurement of Three Phase: Txhim kho efficiency thiab txo cov kev hloov pauv.
Cov qauv pom zoo: Cov qauv nrog lub tswb tsis siv neeg tso tawm, Bluetooth cov ntaub ntawv xa mus, thiab cov xim touchscreen yog nyiam.

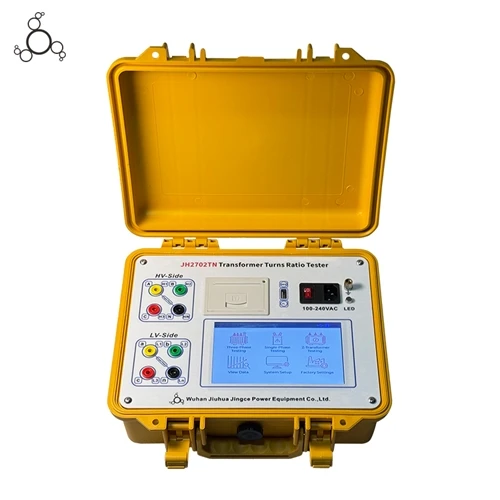

Voltage ratio thiab kev sib txuas pab pawg kuaj → Xaiv "Transformer Ratio Group Tester"
Cov xwm txheej muaj feem xyuam: Transformer ua ntej-kev lees paub kev lees paub, kev sim ua haujlwm, thiab kev tiv thaiv kev saib xyuas.
Cov kev xaiv tseem ceeb:
Kev ntsuas ntau: Yuav tsum npog 1-2000 voltage piv, txhawb kev hloov pauv tsis siv neeg.
Kev ntsuas qhov muag tsis pom kev ua haujlwm: tuaj yeem txheeb xyuas txoj kev xaim (xws li Yyn0, Dyn11) thaum pab pawg tsis paub.
CT / PT muaj peev xwm nthuav dav: Yog xav tau kev sim tam sim no transformers, ua ntej cov qauv uas txhawb kev tshawb pom polarity.
Cov kev xav tau kev txav mus los: Rau kev ua haujlwm, cov qauv siv roj teeb lithium (xws li BYQ3211PK) raug pom zoo.
