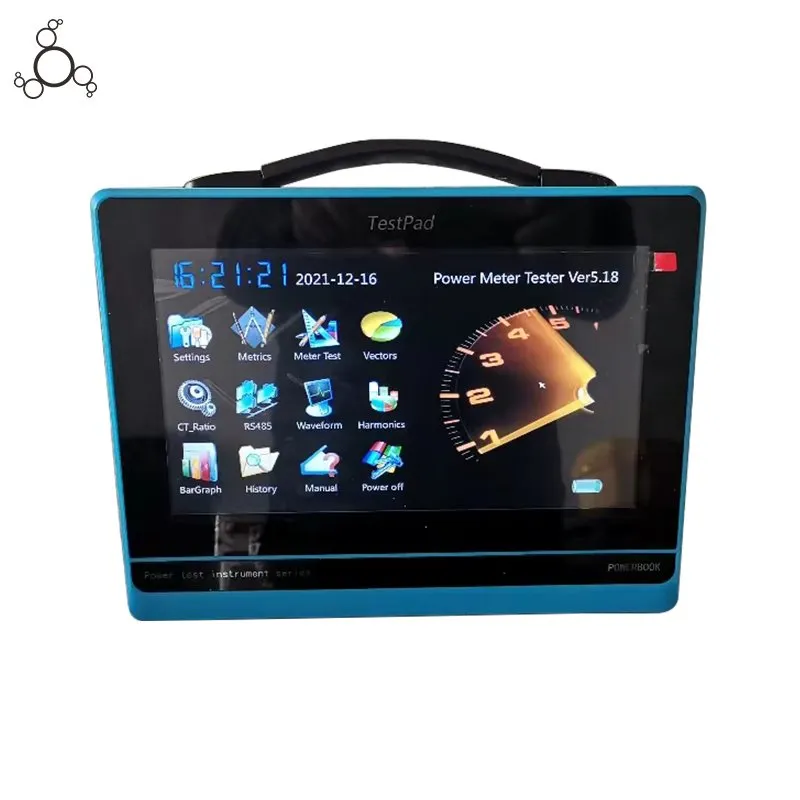

Peb theem Field Power Calibrator

Multi-kev ua haujlwm hluav taws xob ntsuas hluav taws xob ntawm- qhov ntsuas qhov ntsuas qhov ntsuas yog qhov ntsuas qhov ntsuas siab siab uas tuaj yeem ntsuas qhov ntsuas hluav taws xob thiab txheeb xyuas lub ntsuas hluav taws xob hluav taws xob thiab txiav txim siab ntawm - qhov chaw txuas. Cov cuab yeej tau nruab nrog lub siab precision thiab siab linearity PT thiab CT, yog li nws muaj qhov ntsuas qhov tseeb thaum kuaj ntau yam hluav taws xob tsis zoo.Thiab nws tau nruab nrog lub clamp- hom tam sim no transformers . Cov neeg siv tsis tas yuav disconnect tam sim no Circuit Court kom xaim yooj yim nrog lawv ntawm qhov chaw .Cov cuab yeej siv siab -kawg embedded tswj vaj huam sib luag thiab siab tiag tiag -lub sij hawm multitasking operating system thiab 10-inch loj- npo xim LCD saib . Nws siv lus Askiv graphical ua haujlwm interface nrog lus Askiv tam sim. Tus txiv neej- tshuab kev sib tham interface yog tus phooj ywg .Nws muaj lub luag haujlwm ntawm vector daim duab duab thiab kev txiav txim hluav taws xob, uas tuaj yeem muab lub hauv paus txhim khu kev qha rau kev kuaj xyuas qhov tseeb ntawm lub voj voog. Nws siv lub capacitive screen kov ua haujlwm uas yog qhov zoo ntawm tes thiab yooj yim kawm. Nws tau tsim-hauv loj- muaj peev xwm cov ntaub ntawv nco, uas tuaj yeem khaws ntau tshaj 60,000 pawg ntawm cov ntaub ntawv thiab tuaj yeem txuas ntxiv mus tsis kawg.Cov neeg siv tuaj yeem xa cov keeb kwm -cov ntaub ntawv mus rau lub computer nrog U disk thiab tseem tuaj yeem siv cov kev tswj hwm keeb kwm yav dhau los ntawm cov cuab yeej kom ua tiav cov kev tswj hwm hauv computer.Cov cuab yeej yog tsim los ntawm peb lub tuam txhab yas yas. Cov cuab yeej zoo nkauj zoo nkauj thiab siv tau. Nws yooj yim rau kev khiav lag luam thaum sim ntawm qhov chaw. Thaum lub cuab yeej ua haujlwm, nws lub nraub qaum tuaj yeem qhib. Yog li nws tuaj yeem ua haujlwm ntawm tes lossis ntawm lub desktop. Qhov ntsuas yog nruab nrog lub zog siab tus kheej-stretching kov. Nws yog qhov yooj yim rau tus neeg teb xov tooj tuav lub ntsuas nrog ib sab tes.

1.Cov cuab yeej siv siab - kawg embedded tswj vaj huam sib luag thiab siab tiag tiag - lub sij hawm multitasking operating system thiab quasi Windows style interface.

2. Cov cuab yeej yog qhov ntsuas siab -cov cuab yeej ntsuas qhov tseeb uas tuaj yeem kuaj xyuas hluav taws xob ntsuas hluav taws xob thiab ntsuas hluav taws xob tsis zoo thiab ntsuas cov teeb meem hluav taws xob zoo xws li waveform distortion, voltage fluctuation thiab peb -phase unbalance nyob rau hauv daim phiaj fais fab, txhawb kev saib xyuas lub zog ntawm lub sijhawm.

3.Thaum ntsuas qhov yuam kev ntawm lub ntsuas ntsuas thaum lub sijhawm thauj khoom tiag tiag hauv -circuit, cov neeg siv tsis xav tau lub zog hluav taws xob thiab tsis tas yuav hloov lub ntsuas hluav taws xob thiab qhib lub ntsuas ntsuas.

4. Nws tuaj yeem ntsuas tau ntau yam ntawm cov hluav taws xob tsis zoo, xws li voltage, tam sim no, lub zog ua haujlwm, lub zog reactive, lub kaum sab xis, lub zog qhov tseem ceeb, zaus, thiab lwm yam. Thiab tom qab ntawd nws tuaj yeem xam qhov ntsuas qhov yuam kev ntawm lub ntsuas ntsuas lub voj.

5. Nws muaj ib daim duab hexagonal zaub muaj nuj nqi, uas tuaj yeem ua vector tsom xam ntawm lub ntsuas hluav taws xob, thiab xyuas qhov tsis ncaj ncees lawm ntawm cov khoom siv metering; nyob rau hauv peb-theem peb-wire kev twb kev txuas hom, nws tuaj yeem txiav txim 48 txoj kev xaim; kev suav tsis siv neeg ua haujlwm ntawm lub zog ntxiv yog yooj yim siv. Cov neeg ua haujlwm suav cov khoom siv hluav taws xob ntxiv rau cov neeg siv uas muaj teeb meem thaiv kab.

6.Qhov ntsuas tau nruab nrog lub clamp- hom tam sim no transformers . Cov neeg siv tsis tas yuav tsum tau txiav lub voj voog tam sim no los ntsuas qhov yooj yim thiab nyab xeeb.

7. Nws tuaj yeem kuaj ntau yam ntsuas ntsuas xws li voltmeter, ammeter, lub ntsuas hluav taws xob, theem ntsuas thiab lwm yam thiab txhua yam ntawm 1A lossis 5A active lossis reactive fais fab hluav taws xob ntsuas hluav taws xob ntawm peb-theem peb- hlau lossis peb-theem plaub-hlau lossis ib qho{{8.}}phase kev twb kev txuas

8.Cov neeg siv tuaj yeem siv lub photoelectric lossis phau ntawv qhia lossis mem tes los ntsuas cov ntsuas hluav taws xob.

9. Nws tuaj yeem ntsuas qhov tseeb ntawm 2-64th voltage harmonic thiab tam sim no harmonic cov ntsiab lus .

10. Raws li cov khoom siv hluav taws xob zoo tshaj plaws, nws tuaj yeem ntsuas thiab txheeb xyuas qhov zoo ntawm AC fais fab mov ntawm daim phiaj siv hluav taws xob rau tus neeg siv, xws li kev sib txawv ntawm qhov sib txawv, qhov sib txawv ntawm qhov hluav taws xob, qhov hluav taws xob hloov pauv, tso cai tsis sib npaug ntawm peb -theem voltage thiab hluav taws xob daim phiaj sib haum xeeb.

11. Nws tuaj yeem tso saib ib qho -theem voltage thiab tam sim no waveform thiab tuaj yeem tso saib peb -theem voltage thiab tam sim no waveform tib lub sijhawm.

12. Load fluctuation monitoring: ntsuas thiab txheeb xyuas qhov hloov pauv ntawm lub zog hluav taws xob zoo ntawm daim phiaj pej xeem tshwm sim los ntawm ntau yam khoom siv hluav taws xob nyob rau hauv ntau lub xeev kev khiav hauj lwm. Re-cord thiab khaws voltage, tam sim no, lub zog ua haujlwm, lub zog rov ua haujlwm, pom lub zog, zaus, theem thiab lwm yam tsis muaj zog.

13. Barcode scanner tuaj yeem raug xaiv kom nkag mus rau qhov bar code ntawm hluav taws xob ntsuas hluav taws xob.

14. Lub 485 kev sib txuas lus interface ntawm lub ntsuas hluav taws xob hluav taws xob tuaj yeem kuaj pom, thiab tuaj yeem ua tiav cov haujlwm ntawm -qhov chaw pov thawj ntawm ntau-kev ua haujlwm (ntseeg) hluav taws xob ntsuas hluav taws xob. Qhov yuam kev ntawm kev thov tuaj yeem raug txheeb xyuas raws li t-o lub voj voog xav tau thiab lub sijhawm plam hauv lub ntsuas hluav taws xob.

15. Nws muaj lub luag haujlwm ntawm perpetual calendar moos los tso saib hnub thiab sijhawm.

16. 60000 cov ntaub ntawv xeem thiab cov txiaj ntsig tuaj yeem khaws cia tib lub sijhawm ntawm - qhov chaw pov thawj (ib qho kev rho tawm lossis txhua qhov kev tshem tawm tuaj yeem xaiv), thiab muab tso rau hauv lub computer nrog U disk. Kev tswj hwm khoos phis tawj tuaj yeem ua tiav los ntawm kev tswj hwm keeb kwm yav dhau los software (yeem).

17. Raws li cov khoom siv hluav taws xob ntsuas hluav taws xob zoo, cov cuab yeej siv qhov loj -screen thiab kov- tshuaj ntsuam xim LCD saib, lus Askiv graphical ua haujlwm interface nrog cov ntaub ntawv qhia lus Askiv thiab ntau qhov ntsuas qhov sib cuam tshuam. Tus txiv neej- tshuab sib tham interface yog tus phooj ywg.

18. Capacitive touch screen, siab kov rhiab heev thiab ua haujlwm yooj yim.

19. Kev xaiv virtual tuaj yeem siv los txheeb xyuas cov ntsuas hluav taws xob hluav taws xob ntawm qhov chaw tsis muaj kev thauj khoom.

20. Me me, lub teeb yuag thiab yooj yim nqa. Nws tuaj yeem siv tsis tau tsuas yog rau kev ntsuas kev ntsuas, tab sis kuj yog cov cuab yeej ntsuas ntsuas hauv chav kuaj. Nws yog ib qho zoo tagnrho 3 theem analyzer rau daim teb thiab kuaj daim ntawv thov.

1.Input khoom

Kev ntsuas voltage:

0 ~ 400V, 57.7V, 100V, 220V, 400V plaub tsis siv neeg hloov ntau yam.

Kev ntsuas tam sim no:

0 ~ 5A. Cov ua - tam sim no transformers yog 5A (CT).

Lub clamp transformer muaj rau kais txoj hauj lwm:

me me clamp (5A / 25A).

nruab nrab clamp (100A / 500A) (yeem).

loj clamp (400A / 2000A).(yeem).

Lub kaum sab xis ntsuas ntau: 0 ~ 359.999 degree.

Kev ntsuas ntau zaus: 45 ~ 55Hz.

2. Qhov tseeb

Kev ntsuas ntsuas qhov ntsuas:

Qhov hluav taws xob: ± 0.05%

Tam sim no: ± 0.05% (clamp transformer ± 0.2%)

Lub zog ua haujlwm: ± 0.05% (clamp transformer ± 0.2%)

Reactive zog: ± 0.2% (clamp transformer ± 0.5%)

Lub zog hluav taws xob: ± 0.05% (clamp transformer ± 0.2%)

Reactive hluav taws xob: ± 0.2% (clamp transformer ± 0.5%)

Ntau zaus: ± 0.05%

Theem: ± 0.2 degree

3. Lub zog zoo

Harmonic zaus ntsuas ntau: 2-64

Qhov tseem ceeb voltage thiab tam sim no amplitude: tso cai yuam kev ntawm lub hauv paus voltage Tsawg dua los yog sib npaug rau 0.5% FS; Kev tso cai yuam kev ntawm qhov tseem ceeb tam sim no Tsawg dua lossis sib npaug li 1% FS

Kev ntsuas yuam kev ntawm theem sib txawv ntawm qhov tseem ceeb voltage thiab tam sim no:

Tsawg dua lossis sib npaug li 0.5 degree

Kev ntsuas qhov yuam kev ntawm cov ntsiab lus ntawm qhov sib haum xeeb: Tsawg dua lossis sib npaug rau 0.1%

Kev ntsuas qhov yuam kev ntawm cov ntsiab lus tam sim no sib haum xeeb: Tsawg dua lossis sib npaug li 0.2%

Peb theem voltage unbalance yuam kev: Tsawg dua los yog sib npaug rau 0.2%

4. Ua haujlwm kub

Ua haujlwm kub: - 10℃~ + 40 degree

5. Rwb thaiv tsev

1) Lub rwb thaiv tsev tsis kam ntawm qhov voltage, tam sim no input davhlau ya nyob twg thiab lub vaj tse Ntau dua los yog sib npaug rau 100MΩ.

2) Nrog rau 1.5KV (tus nqi siv tau) nrog lub zog zaus ntawm kev khiav hauj lwm lub zog tawm tswv yim thiab lub plhaub, uas kav ib feeb.

6. Txheem hluav taws xob hluav taws xob mem tes tas li

ua -in transformer tas li (FL)=10000 r / kW · h

Clamp transformer tsis tu ncua (FL):
