1.Qhov peb -theem CNC sinusoidal inverter fais fab mov nta pib mos thiab muag muag ua haujlwm, ua kom muaj kev ntsuas ceev ceev thiab siab precision.
2.Testing functions rau peb-theem transformers, ib zaug-theem transformers, PTs, CTs, thiab Z-hom transformers, nrog rau piv, pab pawg neeg, thiab polarity.
3.Qhov peb-theem xeem nta kab-rau- kab voltage piv, kab-rau-theem voltage piv, lem ratio, vector daim duab, thiab pab pawg sib txuas kev xeem ua haujlwm.
4.CT piv polarity xeem muaj nuj nqi.
5.Nws muaj qhov sib txawv ntawm qhov ntsuas qhov ua haujlwm hauv ib zaug -theem xeem.
6.Txoj haujlwm kais tuaj yeem kuaj txog 99 txoj haujlwm.
7.Qhov kev ntsuas yog qhov dav, nrog qhov siab tshaj plaws ntawm 2000.
8.High/Low Voltage Reversal Alert.
9.Output luv-circuit ceeb toom.
10.Lub moos thiab hnub tim zaub tseem ua haujlwm yam tsis muaj hluav taws xob poob; cov ntaub ntawv khaws cia hauv zos nrog 100 cov ntaub ntawv xeem, thiab cov ntaub ntawv khaws cia tuaj yeem xa mus rau PC.
11.Thermal tshuab luam ntawv muaj nuj nqi.
12.Compact thiab hnav, ua rau nws yooj yim rau nqa thiab siv.
KhoomTaw qhia

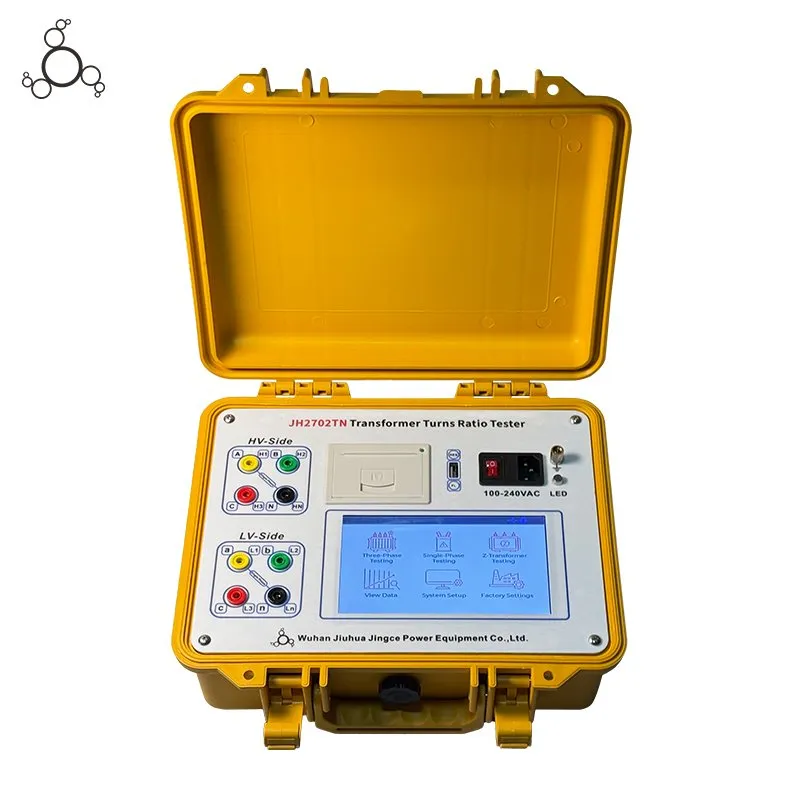

Ua txhaum cov kev txwv ntawm cov qauv piv txwv tus choj testers, uas muaj kev ua haujlwm tsis txaus ntseeg, kev nyeem ntawv tsis txaus ntseeg, ib zaug -theem- tsuas yog kev sim, thiab qhov xav tau ntawm phau ntawv hloov pauv cov ntaub ntawv, lub handheld transformer ttr optimizes kev ntsuas kev ua tau zoo thiab raug nrog cov qauv tsim thiab kev ua haujlwm siab heev. Nruab nrog 7.0-inch siab- daws teeb meem 800 × 480 TFT xim touchscreen LCD, lub cuab yeej muaj cov neeg ua haujlwm suav nrog cov lus ceeb toom, ua kom muaj kev nkag siab thiab ua haujlwm yooj yim txawm rau ntawm -cov neeg ua haujlwm kuaj xyuas. Nws yog ib qho - lub sij hawm xaim tsim kev txhawb nqa ib qho - nyem ua tiav ntawm peb - theem piv kev sim, txo qis ntawm - qhov chaw xaim hluav taws xob ua haujlwm thiab txo qis lub zog hluav taws xob hluav taws xob tu lub sij hawm.Powered los ntawm peb -theem CNC sine inverter fais fab mov nrog ceev ceev pib thiab muag muag Kev ntsuas qhov tseeb, nrog rau kev ntsuas dav dav ntawm 0.9-2000 thiab ntau- qib cov qauv ntsuas kom ua tau raws li qhov yuav tsum tau ua ntawm ntau hom kev hloov pauv. Nws muaj peev xwm ntsuam xyuas tau zoo, txhawb qhov sib piv, pab pawg thiab polarity xeem rau peb -theem transformers, ib zaug -theem transformers, PT, CT thiab Z-hom transformers; qhov peb-theem xeem muaj nuj nqi npog kab rau kab voltage piv, kab rau theem voltage piv, lem ratio, vector daim duab thiab pab pawg neeg kev sib txuas kuaj, thiab ib zaug -theem xeem yog nruab nrog lub kaum sib txawv xeem muaj nuj nqi, nrog rau tus kais hloov pauv kev ntsuam xyuas txhawb nqa mus txog 99 lub zog-tag nrho raws li ntau yam kev ntsuam xyuas xav tau ntawm transformer ttr cov ntaub ntawv muaj tseeb thiab cov ntaub ntawv hloov hluav taws xob hauv cov khoom siv hluav taws xob. kuaj pom. Kev sib koom ua ke siab ntawm kev ua haujlwm thiab kev tsim qauv nqa tau ua rau ttr transformer kuaj tau zoo dua thiab yooj yim hauv cov ntawv thov ntawm qhov chaw.
Khoom Parameter
|
Qauv |
JH2711 TSO |
|
ntau |
0.9~2000 |
|
raug |
± (nyeem × 0.1% + 2 tus lej) (tsawg dua lossis sib npaug rau 200) |
|
± (nyeem × 0.2% + 2 tus lej) (ntau dua 200 thiab tsawg dua lossis sib npaug rau 500) |
|
|
± (nyeem × 0.3% + 2 tus lej) (ntau dua 500) |
|
|
daws teeb meem ratio |
0.9~9.9999(0.0001) |
|
10~99.999(0.001) |
|
|
100~999.99(0.01) |
|
|
1000~1999.9(0.1) |
|
|
ua hauj lwm fais fab mov |
Lithium roj teeb fais fab mov, roj teeb muaj peev xwm 5.2AH |
|
instrument luj |
Tag nrho cov khoom hnyav 8.4 kg (nrog rau chav tsev loj, uas hnyav 2.2 kg). |
|
Ntsuas ntim |
280mm (ntev) × 180mm (dav) × 80mm (siab) |
|
kawg -siv kub |
-10℃~ 50 degree |
|
txheeb ze av |
<90%, no condensation |
Product Application Scenarios
Fais Fab Kev Tiv Thaiv Kev Ntsuas
Cov chaw muab hluav taws xob ua haujlwm tsis tu ncua thiab kev ntsuas polarity nyob rau hauv -kev pabcuam nruab nrab-point faib transformers, grounding transformers, PT/CT txhawm rau txheeb xyuas cov khoom siv tsis raug.
Fais fab Engineering txais
Parameter pov thawj ntawm cov transformers tshiab thiab kev sib nrig sib inductors ua ntej daim phiaj kev sib txuas hauv cov haujlwm tshiab / kho tshiab kom ntseeg tau tias tsim nyog thiab ua haujlwm tau zoo.
Cov cuab yeej tsim khoom / kho kuaj
Transformer manufacturers thiab cov tuam txhab kev saib xyuas ua haujlwm ex-cov chaw tsim khoom kuaj rau ib nrab-cov khoom tiav / tiav thiab kev ua haujlwm rov- tshuaj xyuas rau cov khoom siv kho tsis raug.
Ntawm -Site Emergency Repair
Ceev nrooj nrhiav qhov txhaum ua rau ntawm cov ncej sab nraum zoov, lub thawv hloov pauv, thiab chav faib khoom thaum lub sijhawm hloov pauv sai sai, txo lub sijhawm hluav taws xob.
Kev Lag Luam thiab Mining Enterprise Kev Ua Haujlwm
Hlau, tshuaj, mining thiab lwm yam kev lag luam ntawm nws tus kheej ua haujlwm txhua hnub thiab kev ua txhaum ntawm kev hloov pauv sab hauv thiab kev sib nrig sib inductors.
Tshwj xeeb Transformer Test
Kuaj kab-rau-theem voltage piv thiab qhov nruab nrab tshwj xeeb-point parameters rau Z-hom grounding transformers thiab tshwj xeeb nruab nrab-point transformers.

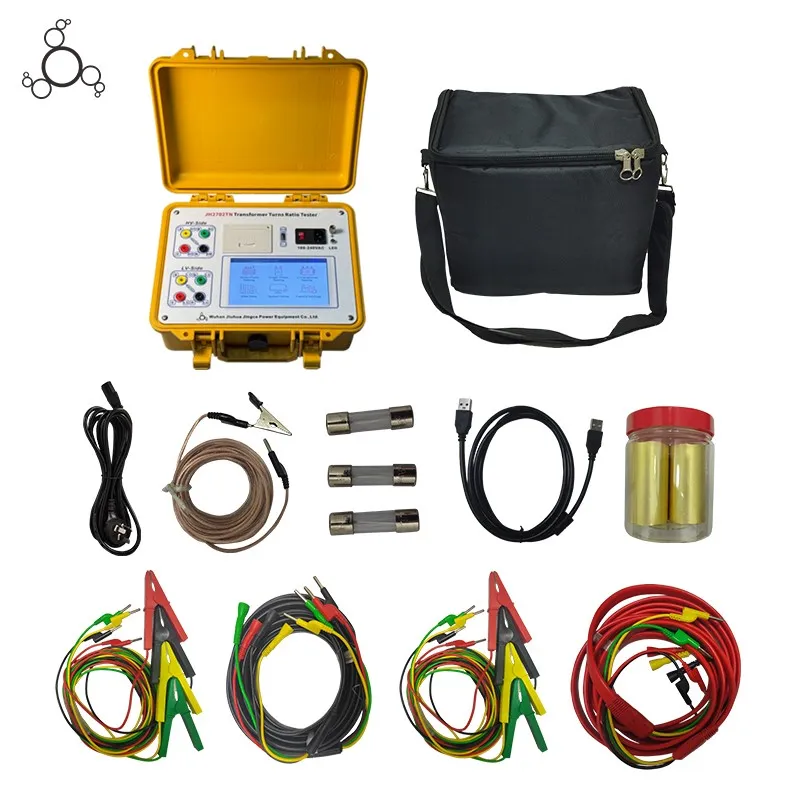

Khoom Accessories
- Ib qho nyiaj aluminium alloy portable hard case
- Lub hwj chim adapter nrog lub hwj chim qaum
- Ib tug USB data cable
- Ob daim ntawv luam ntawv
- Plaub pawg ntawm kev mob siab rau kev xeem coj (liab, daj, ntsuab, dub) nrog cov kab nuv ntses loj
Xa, Shipping thiab Pab
FAQ
Q: Dab tsi yog qhov txiaj ntsig ntawm kev txav mus los ntawm qhov ntsuas ntsuas qhov ntsuas no, thiab nws hloov pauv li cas rau ntawm - qhov chaw sim?
A: Chav tsev tseem ceeb ntawm tus ntsuas tsuas hnyav 2.2kg, thiab tag nrho cov teeb yog 8.4kg nrog lub ntim ntim ntawm 280mm × 180mm × 80mm, uas yooj yim nqa thiab ua haujlwm hauv nqaim ntawm - qhov chaw ib puag ncig xws li chav faib khoom thiab lub thawv hloov pauv. Nws yog siv los ntawm 5.2AH lithium roj teeb, tsis tas yuav tsum tau rau ntawm -qhov chaw AC fais fab mov, thiab tsim nyog rau kev sim xov tooj ntawm tes hauv ntau qhov xwm txheej sab nraud thiab thaj chaw.
Q: Dab tsi yog qhov yooj yim ntawm kev ua haujlwm ntawm tus ntsuas, thiab nws puas tsim nyog rau ntawm - tus tswv tsev siv sai?
A: Lub tester yog nruab nrog 7.0-inch siab- daws teeb meem 800 × 480 TFT xim touchscreen LCD thiab humanized Suav zaub mov qhia system. Nws txais yuav ib qho - lub sij hawm xaim tsim, uas tuaj yeem ua tiav peb - theem piv nrog ib nias. Tsis xav tau kev hloov pauv cov ntaub ntawv nyuaj ntawm phau ntawv, thiab cov txiaj ntsig kev ntsuam xyuas yog intuitive thiab meej. Txawm tias cov neeg ua haujlwm nyob rau ntawm qhov chaw uas tsis paub txog cov cuab yeej tuaj yeem ua haujlwm sai.
Q: Vim li cas thiaj xaiv peb lub tuam txhab cov khoom siv tes ua piv txwv piv nrog cov khoom zoo sib xws hauv khw?
A: Peb lub tuam txhab tau tsom mus rau R & D thiab tsim cov cuab yeej ntsuas hluav taws xob tau ntau xyoo, nrog rau cov cuab yeej tseem ceeb thiab kev nplua nuj ntawm - qhov kev thov ntawm qhov chaw. Cov khoom siv tes tuav no yog tsim los ntawm nws tus kheej thiab ua kom zoo rau cov ntsiab lus mob ntawm - qhov chaw hloov pauv hloov pauv, xws li kev ua haujlwm nyuaj thiab tsis zoo ntawm cov khoom zoo sib xws. Nws koom ua ke nrog kev ua haujlwm siab, kev txav mus los, kev ua haujlwm dav dav thiab kev tiv thaiv ntse, thiab sib tw nrog zoo meej tom qab - kev muag khoom. Nyob rau tib lub sijhawm, cov khoom lag luam muaj kev tswj hwm nruj hauv cov txheej txheem tsim khoom, uas tuaj yeem ua kom lub sijhawm ntev - ruaj khov thiab txhim khu kev qha hauv kev ua haujlwm ntawm - qhov chaw kuaj.
