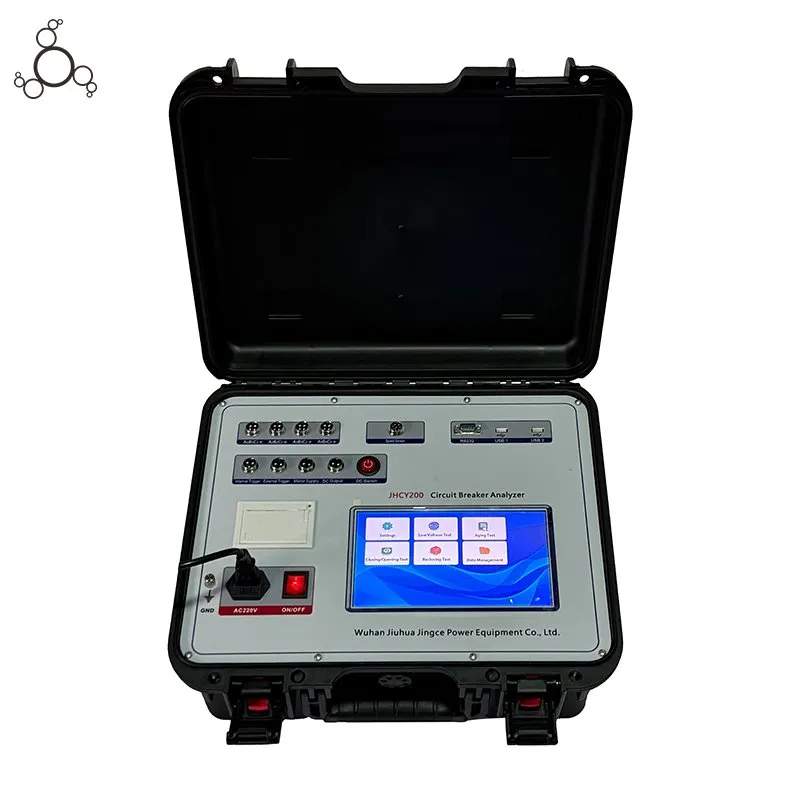

Gas Insulated Circuit Breaker Tester

Nrog rau kev txhim kho hauv zej zog, tib neeg muaj kev xav tau ntau dua thiab siab dua rau kev nyab xeeb thiab kev ntseeg siab ntawm kev siv hluav taws xob. High-voltage circuit breakers yog lub luag haujlwm rau ob txoj haujlwm ntawm kev tswj hwm thiab kev tiv thaiv hauv lub zog hluav taws xob, thiab lawv qhov kev ua tau zoo yog cuam tshuam ncaj qha rau kev ua haujlwm nyab xeeb ntawm lub zog hluav taws xob. Cov yam ntxwv ntawm cov khoom siv hluav taws xob yog ib qho tseem ceeb ntawm kev txiav txim siab kev ua haujlwm ntawm lub Circuit Court breaker. Cov cuab yeej no tau tsim tshwj xeeb rau kev ntsuas lub sijhawm ntsuas hluav taws xob thiab tuaj yeem ntsuas qhov ntsuas lub sijhawm tseem ceeb ntawm cov hluav taws xob hluav taws xob, thaum tseem ua haujlwm raws li tus kws tshaj lij Circuit Court breaker lub tshuab nqus tsev vacuum tester los pab ntsuas kev ntsuas kev ua haujlwm ntawm lub tshuab nqus tsev vacuum.

1.Coil tam sim no: siab tshaj tam sim no 20A, daws teeb meem: 0.01A. Qhov tseeb: 5%
2. Ntsuas ntau yam ntawm coil tsis kam: 0 ~ 2000Ω, daws teeb meem: 0.01Ω.Qhov tseeb: 5%
3. Cov khoom siv hluav taws xob: AC220V ~ 240V; 50/60Hz
4. DC lub zog tso zis: DC6 ~ 270V tsis tu ncua hloov kho, DC24V Tsawg dua lossis sib npaug rau 15A (lub sijhawm luv), DC220V Tsawg dua lossis sib npaug rau 20A (lub sijhawm luv).
5. Sab nraud trigger voltage: AC / DC10-300V, tam sim no Tsawg dua lossis sib npaug rau 120A
6. Isolating hloov ntsuas ntau yam:
Cov zis hluav taws xob: DC6 ~ 270V (adjustable);
Lub sij hawm tso zis hluav taws xob: 0.01-20 vib nas this (tuaj yeem teeb tsa);
lub sij hawm sau ntau tshaj plaws ntawm cov teeb liab tawg yog 200 vib nas this;
ntsuas tau tawg lub sij hawm kaw, qhib lub sij hawm, peb -theem sib txawv lub sij hawm, bounce lub sij hawm thiab zaus
7.Hos ntim: 450 * 400 * 220mm
8.Siv ib puag ncig: -20℃~ +50 degree
9.Relative humidity: Tsawg dua lossis sib npaug li 90%
