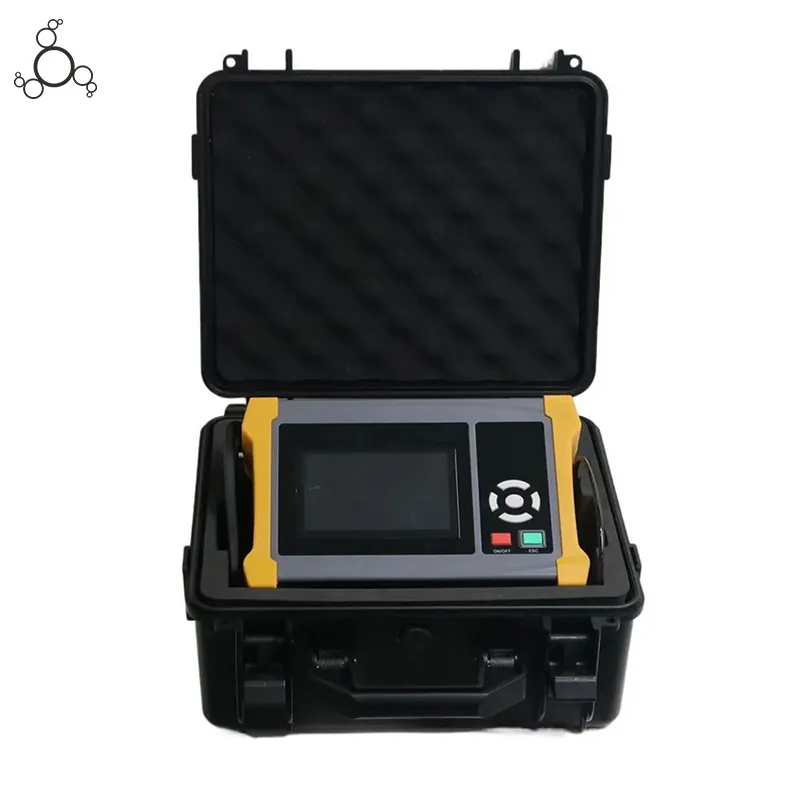

Handheld SF6 Dew Point Tester

1.It adopts the international advanced pumping type, NDIR single-beam dual-wavelength infrared measurement technology, with high detection sensitivity, accuracy and stability;
2.It adopts high-precision digital processing technology, as well as unique drift control and temperature compensation circuit, and has strong anti-interference ability;
3.It has full-featured self-test functions such as low battery power, sensor failure, and over-range during detection;
4.Adopt color large-screen dot matrix LCD display, full Chinese menu function management;
5.The detection process displays the detection data in real time, and has a dynamic waveform curve analysis diagram;
6.The screen displays the alarm value and curve display, and adopts the buzzer alarm mode;
7.Self-calibration function;
8.Large-capacity rechargeable lithium battery, continuous working time is more than 5 hours;
9.Clock perpetual calendar function;
10.Compact size, easy to measure by hand;
11.It has the function of 20,000 pieces of data, waveform storage, and flipping query;

With the gradual improvement of the voltage level of domestic substations, the current use of SF6 high-voltage circuit breakers in the power sector is growing at a rate of about 15%/year. In the field of high-voltage, ultra-high voltage and ultra-high voltage switches, SF6 gas has almost become the only insulation and arc extinguishing medium. However, SF6 high-voltage switches are mostly installed indoors with relatively slow air flow. Once SF6 gas leaks, it is easy to cause local hypoxia, resulting in suffocation of staff due to lack of oxygen and posing great safety hazards to personnel safety. At the same time, the arc extinguishing effect of the high-voltage circuit breaker is greatly reduced, causing damage to the circuit breaker body. Therefore, once SF6 gas leakage is found, corresponding measures must be taken to accurately locate the leakage point, repair it, and timely eliminate the potential safety hazards of the high-voltage circuit breaker.In addition to leakage detection, sf6 gas analysis (including humidity and purity detection via sf6 dew point tester) is also a key part of SF6 equipment maintenance. The high-precision handheld SF6 gas leak detector accurately locates SF6 gas leakage points by detecting SF6 gas concentration values, issues sound and light alarms according to user-set concentration thresholds, and monitors data change trends. Combined with sf6 gas analyzer test for comprehensive performance evaluation, it brings great convenience to the maintenance of SF6 equipment.
