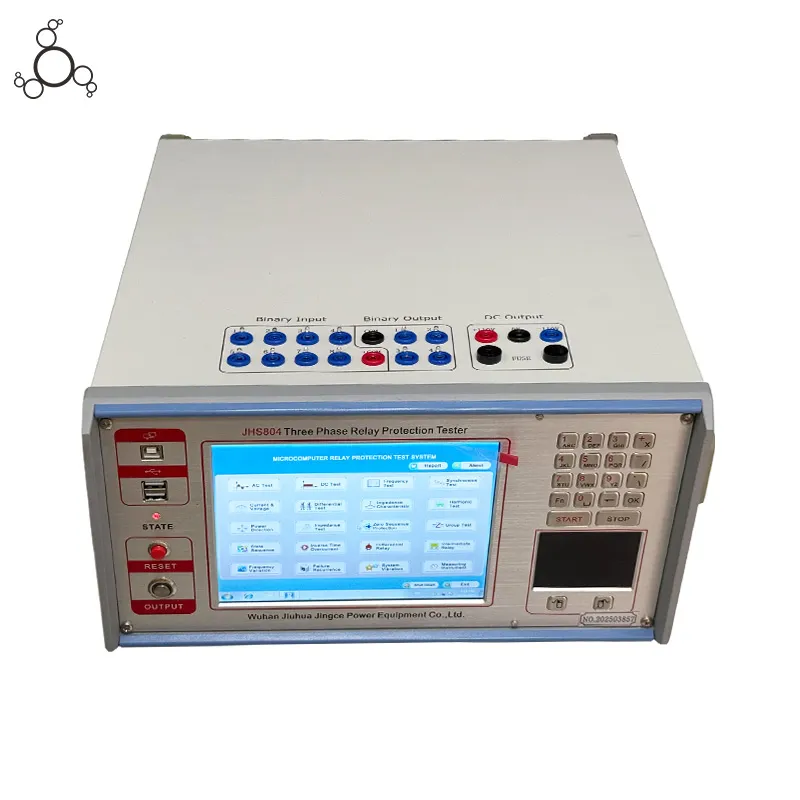

120A Peb Theem Relay Protection Tester

JHS804 yog ib tug kws tshaj lij peb-theem relay tester thiab mob siab rau kev txhaj tshuaj thib ob tam sim no uas tsim los rau lub zog tiv thaiv kev debugging, featuring 4-theem voltage (125V/phase) thiab 3-theem tam sim no (40A/phase, mus txog 120A nyob rau hauv parallel) tso zis. Nws siv lub Windows 7 interface, 8.4-nti cov xim tseeb xim, thiab DSP + FPGA core tswj, txhawb kev ntsuam xyuas rau cov tsoos relays thiab niaj hnub microcomputer tiv thaiv cov cuab yeej. Nrog rau qhov raug siab, kev sim ua haujlwm nplua nuj, thiab tsim qauv nqa tau yooj yim, nws ua raws li cov qauv DL / T624-2010, zoo tagnrho rau kev saib xyuas ntawm qhov chaw thiab kev debugging.

JHS804 peb-theem relay tester yog lub siab -kev ua tau zoo cov cuab yeej ntse tsim rau kev ntsuas kev tiv thaiv hluav taws xob. Nws xa tawm 0-125V AC voltage thiab 0-40A AC tam sim no ib theem (3-theem mus txog rau 120A), nrog 0.2% ntsuas qhov tseeb thiab ntau zaus ntawm 0-1000Hz, ua tau raws li DL / T624-2010 tus qauv.
Nruab nrog lub siab -kev ua tau zoo embedded industrial computer thiab Windows 7 system nrog tus kheej -restore function, nws ua kom ruaj khov. Tus tester integrates tshaj 20 xeem modules, nrog rau AC / DC xeem, txawv kev tiv thaiv kev xeem, thiab txhaum recurrence, haum rau transformers, kab, thiab generator teeb. Nws kuj tseem muab ib qho kev ywj pheej DC auxiliary voltage qhov chaw (110V / 220V) thiab 8 khub ntawm cov tswv yim digital / 4 khub ntawm cov khoom tso tawm digital, nrog rau software tus kheej -calibration rau ntev -lub sij hawm raug.
Featuring ib tug hlau industrial keyboard, kov npo, thiab dual USB interfaces, nws enables yooj yim ua hauj lwm thiab cov ntaub ntawv nkag. Qhov hnyav 17.5kg nrog qhov loj me, nws yooj yim rau ntawm - siv qhov chaw. Cov khoom lag luam muaj kev txhim khu kev qha thiab kev ua haujlwm zoo, muab cov kev ntsuam xyuas zoo thiab raug rau cov neeg siv fais fab kev lag luam.
