Lub Rooj Tswjhwm Saib tseem ceeb yog DSP + FPGA architecture, 16 ntsis DAC tso zis, ua kom siab - ceev sine yoj 2000 cov ntsiab lus txhua lub voj voog mus rau qhov tseem ceeb yoj, uas zoo heev txhim kho nthwv dej zoo thiab qhov tseeb ntawm qhov ntsuas ntsuas.

Classic Windows XP kev khiav hauj lwm interface, tus txiv neej tus phooj ywg - tshuab interface, yooj yim thiab ceev rau kev khiav lag luam; High-kev ua tau zoo embedded industrial tswj computer thiab 8.4 nti daws teeb meem ntawm 800 × 600 TFT tseeb xim zaub uas muab cov ntaub ntawv nplua nuj, suav nrog kev ua haujlwm tam sim no thiab txhua yam ntaub ntawv pab.

Lub software nrog tus kheej -calibrating muaj nuj nqi, uas tsis txhob calibrate raug los ntawm kev kho relays tom qab qhib rooj plaub, zoo heev txhim khu kev ruaj ntseg ntawm qhov raug.

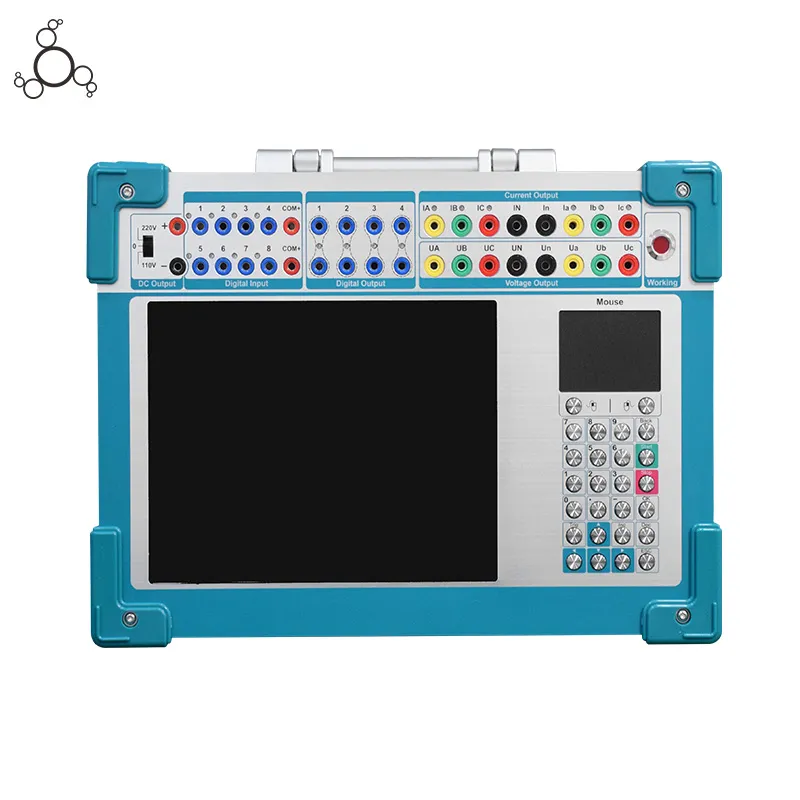

Khoom Taw Qhia

1.Qhov kev tiv thaiv relay tester ua tau raws li tag nrho cov kev xav tau ntawm kev sim teb. Qhov ntsuas no nrog tus qauv 6 theem voltage, 6 theem tam sim no tso zis, voltage 125V / theem, tam sim no 30A / theem, 6 theem nyob rau hauv parallel mus txog 180A. Digital Signal Processor Microcomputer. Tsis tsuas yog sim cov tsoos relays thiab tiv thaiv, tab sis kuj sim cov niaj hnub microcomputer relays, tshwj xeeb rau transformer sib txawv tiv thaiv thiab hloov khoom siv.

2.Tag nrho cov kev ntsuas kev ua tau raws li tus qauv DL/T624-1997: Cov txheej txheem ntawm kev ntsuas lub tshuab computer relay.

3.Classic Windows XP kev khiav hauj lwm interface, tus phooj ywg tus txiv neej- tshuab interface, yooj yim thiab ceev rau kev khiav lag luam; High-kev ua tau zoo embedded industrial tswj lub computer thiab 8.4 nti daws teeb meem ntawm 800 × 600 TFT tseeb xim zaub uas muab cov ntaub ntawv nplua nuj, suav nrog kev ua haujlwm tam sim no thiab txhua yam ntaub ntawv pab.

4.Lub Windows XP system los nrog cov kev ua haujlwm rov qab; zam kev sib tsoo los ntawm kev kaw tsis raug cai, lossis ua haujlwm tsis zoo, thiab lwm yam.

5.Equipped nrog ultra-nyias muaj keyboard thiab optical nas, ua tiav ntau yam kev ua haujlwm siv cov keyboard lossis nas tib yam li PC zoo tib yam.

6.Lub rooj tswj hwm tseem ceeb yog DSP + FPGA architecture, 16 ntsis DAC tso zis, ua kom siab - ceev sine yoj 2000 ntsiab lus txhua lub voj voog mus rau qhov tseem ceeb yoj, uas zoo heev txhim kho nthwv dej zoo thiab qhov tseeb ntawm qhov ntsuas ntsuas.

7.Siv siab -fidelity linear amplifier. Ob leeg los xyuas kom meej qhov tseeb ntawm qhov tsis tshua muaj tam sim no, tab sis kuj lav qhov kev ruaj ntseg ntawm qhov siab tam sim no.

8.USB ncaj qha txuas nrog PC, tsis muaj adapter cable, yooj yim rau siv.

9.Tau txuas nrog lub khoos phis tawj lub khoos phis tawj (xaiv tau).Laptop khoos phis tawj thiab cov tshuab ua haujlwm siv tib lub software, tsis tas yuav rov ua dua - kawm txog cov txheej txheem ntawm kev ua haujlwm.

10.Nrog ib tug cais DC auxiliary voltage qhov chaw, tso zis voltage 110V (2A), 220V (1A), muab relays los yog tiv thaiv pab kiag li lawm uas yuav tsum tau DC hwj chim.

11.Lub software nrog tus kheej -calibrating muaj nuj nqi, uas tsis txhob calibrate raug los ntawm kev kho relays tom qab qhib rooj plaub, zoo heev txhim khu kev ruaj ntseg ntawm qhov tseeb.

Khoom Parameter

Qauv	JHS 1200
Cov zis voltage	110V (1A) -220V (0.6A)
Fais fab mov	AC220V ± 10%
Tam sim no qhov chaw	AC / DC voltage qhov chaw, AC / DC tam sim no qhov chaw
Fais fab mov	AC220V ± 10% 50Hz
Maximum tso zis zog ib theem	1000 VA
DC tam sim no tso zis	0- ± 10A / theem, qhov tseeb: 0.5% ± 5mA
Kab hluav taws xob tso zis (tus nqi zoo)	0-240V
Peb -phase parallel output	0-180A
Switching input davhlau ya nyob twg	8 sib
Hloov cov zis davhlau ya nyob twg	4 sib
Lub sij hawm	1ms-9999 s
Kev ntsuas qhov tseeb	1ms ib
