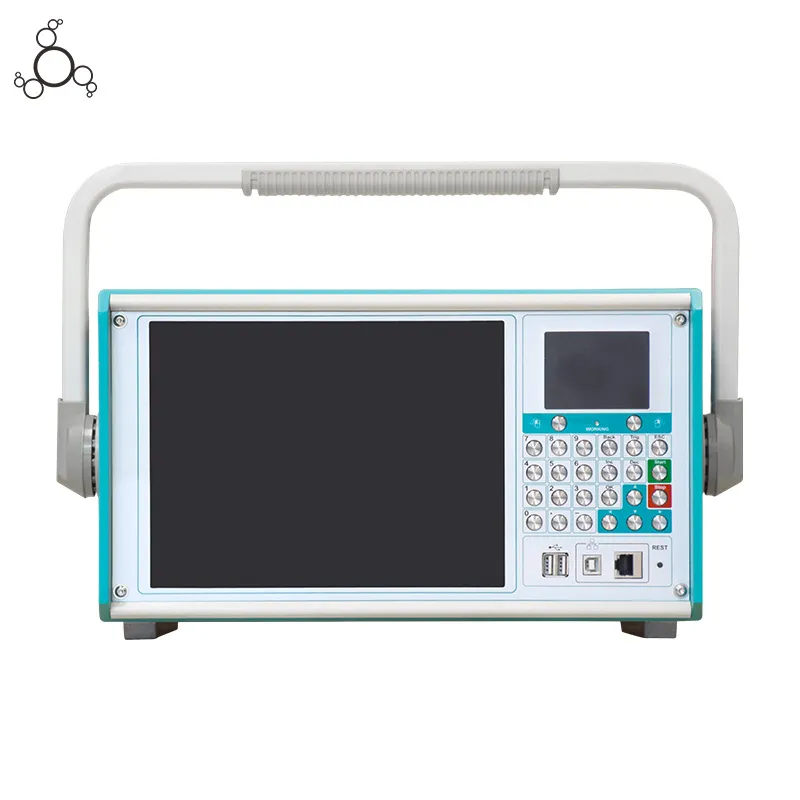

JHT1200 yog tus kws tshaj lij microcomputer relay tiv thaiv tester nrog 6-theem voltage thiab 6-theem tam sim no tso zis, tsim rau 10KV / 35KV thiab hauv qab lub zog tiv thaiv kev debugging. Nws nta Windows XP kev ua haujlwm interface, 10.4-nti xim tseeb xim, DSP + FPGA core tswj, thiab ntau yam kev sim ua haujlwm npog cov tsoos relays thiab niaj hnub microcomputer tiv thaiv cov cuab yeej. Nrog cov zis siab raug, muaj peev xwm tiv thaiv kev cuam tshuam, thiab kev tsim khoom siv tau yooj yim, nws yog ib qho tseem ceeb rau kev tswj xyuas lub zog thiab kev debugging.
Khoom Taw Qhia
Cov khoom siv ntsuas hluav taws xob microcomputer relay tiv thaiv tester yog qhov siab -kev ua haujlwm ntse ntsuas ntsuas ntsuas rau lub zog hluav taws xob tiv thaiv kev tiv thaiv kev debugging. Nws txhawb 6-theem voltage (0-120V/phase) thiab 6-theem tam sim no (0-30A/phase, mus txog 180A nyob rau hauv parallel) tso zis, nrog 0.2% siab ntsuas qhov tseeb thiab dav zaus ntau yam (T) sib ntsib (10{023 Hz) 624-2010 tus qauv yuav tsum muaj. Nruab nrog lub siab -kev ua tau zoo embedded industrial computer thiab Windows XP system nrog tus kheej rov ua haujlwm, nws ua kom ruaj khov ua haujlwm. Lub tester sib xyaw ua ke ntau tshaj 20 qhov kev sim ntsuas, suav nrog AC / DC xeem, ntsuas kev tiv thaiv sib txawv, thiab kev ua txhaum rov qab, muaj peev xwm ntsuas cov transformers, kab, thiab lub tshuab hluav taws xob teeb tsa cov cuab yeej tiv thaiv. Nws kuj tseem muab kev ywj pheej DC auxiliary voltage qhov chaw (110V / 220V) thiab 8 khub ntawm cov tswv yim digital / 4 khub ntawm cov khoom siv hluav taws xob digital, nrog rau software tus kheej-calibration rau lub sijhawm ntev kev ruaj ntseg. Nrog rau tib neeg tsim, nws los nrog ib qho ultra-nyias muaj keyboard, optical nas, thiab dual USB interfaces rau cov ntaub ntawv yooj yim nkag tau thiab hloov kho software. Qhov hnyav txog 18kg thiab nrog qhov loj me, nws tsim nyog rau kev thov ntawm qhov chaw. Cov khoom muaj kev txhim khu kev qha tom qab-muag kev pab cuam, xyuas kom meej thiab meej tiv thaiv debugging rau cov neeg siv fais fab kev lag luam.
Khoom Parameter
|
Qauv |
JHT 1200 |
|
Cov zis voltage |
110V (1A) -220V (0.6A) |
|
Fais fab mov |
AC220V ± 10% |
|
Tam sim no qhov chaw |
AC / DC voltage qhov chaw, AC / DC tam sim no qhov chaw |
|
Fais fab mov |
AC220V ± 10% 50Hz |
|
Maximum tso zis zog ib theem |
320 VA |
|
Cov zis siab tshaj plaws rau theem |
1000 VA |
|
DC tam sim no tso zis |
0- ± 10A / theem, qhov tseeb: 0.5% ± 5mA |
|
Kab hluav taws xob tso zis (tus nqi zoo) |
0-240V |
|
Peb -phase parallel output |
0-180A |
|
Switching input davhlau ya nyob twg |
8 sib |
|
Hloov cov zis davhlau ya nyob twg |
4 sib |
|
Lub sij hawm |
1 ms-9999s |
|
Kev ntsuas qhov tseeb |
1ms ib |
