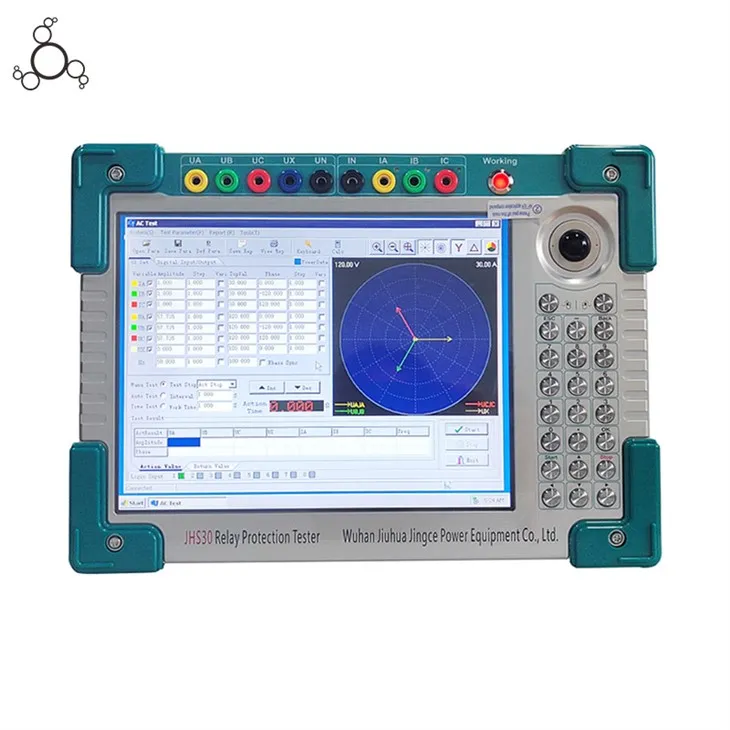

Muaj kev tswj qauv 3 theem relay tester, haum rau 10KV / 35KV tiv thaiv debugging. belongs rau peb lub cim thib plaub portable relay tiv thaiv tester, me me, yooj yim nqa.Cov cuab yeej muaj qauv plaub -theem voltage, peb-theem tam sim no tso zis, classic Windows XP kev khiav hauj lwm interface, siab -kev ua tau zoo embedded industrial tswj computer thiab 10.4 nti daws teeb meem ntawm 800 × 600 LED ncaj qha xim rau PC kev sib txuas lus, siv tau USB interface. Lub khoos phis tawj thiab lub khoos phis tawj ua haujlwm siv tib txheej software, tsis tas yuav rov ua dua - kawm txog txoj haujlwm ua haujlwm.
Nws tseem yog nruab nrog ywj siab DC auxiliary voltage qhov tso zis, qhov tso zis voltage yog 110V (1A), 220V (0.6A). Nws tuaj yeem siv rau cov relays lossis cov khoom siv tiv thaiv uas xav tau DC ua haujlwm fais fab.

Khoom Taw Qhia

Tus kws tshaj lij kev tiv thaiv relay tester no ua tau raws li - qhov yuav tsum tau ua ntawm qhov chaw sim, muaj cov qauv plaub -theem voltage thiab peb- theem tam sim no cov zis. Nws muaj ntau yam rau kev sim tshuaj relays, kev tiv thaiv cov cuab yeej, thiab niaj hnub microcomputer tiv thaiv systems, nrog tshwj xeeb yooj yim rau transformer sib txawv tiv thaiv thiab standby tsis siv neeg switching ntaus ntawv ntsuam xyuas.Tag nrho cov kev qhia tau raws li lub hwj chim kev lag luam tus qauv DL/T624-1997 "Technical Conditions for Microcomputer-raws li". Nws txais yuav qhov classic Windows XP interface nrog kev tsim ua -hauv kev ua haujlwm rov qab kom tsis txhob muaj kev sib tsoo los ntawm kev kaw tsis raug cai lossis kev ua haujlwm tsis raug, ua ke nrog lub siab -kev ua tau zoo embedded industrial tswj lub computer thiab 8.4-inch 800 × 600 TFT cov xim tseeb uas muab cov ntsiab lus tiag tiag -cov ntaub ntawv ua haujlwm ultraquipped{20}. thiab optical nas, nws ua haujlwm zoo li lub PC tsis tu ncua. Lub Rooj Tswjhwm Saib tseem ceeb siv DSP + FPGA architecture nrog 16-ntsis DAC tso zis, tsim 2000 high-density sine waves ib lub voj voog yoj los txhim kho waveform zoo thiab kuaj qhov tseeb. Lub siab-fidelity linear fais fab amplifier kom meej meej rau cov me me tam sim no thiab kev ruaj ntseg rau cov dej loj tam sim no, thaum lub USB interface ua rau kev sib txuas lus ncaj qha rau PC yam tsis muaj cables ntxiv rau kev siv yooj yim.

Khoom Parameter

Qauv	JHS 30
Cov zis voltage	0 ~ 120V / theem (AC) 0160V (DC)
Tam sim no qhov chaw	0 ~ 30A / theem (AC) 010A (DC)
Fais fab mov	AC 220V ± 10% 50Hz
Maximum tso zis zog ib theem	300VA (AC) 150W (DC)
DC tam sim no tso zis	010A
Kab hluav taws xob tso zis (tus nqi zoo)	0 ~ 208V (AC peb -phase kab voltage)
Peb -phase parallel output	0 ~ 90A (AC tam sim no)
Lub sij hawm	0.001ms ~ 9999s
Kev ntsuas qhov tseeb	0.1%
