JH3302 yog lub siab -kev ua tau zoo 10kv rwb thaiv tsev tiv thaiv tester thiab cov kws tshaj lij ir tester, cov hluav taws xob hluav taws xob tiv thaiv hluav taws xob nruab nrog 5-inch loj npo, txais siab - precision ADC rau qhov ntsuas hluav taws xob tiv thaiv raug. Nws suav nrog lub sijhawm kuaj, qhov sib piv ntawm qhov nqus thiab qhov ntsuas polarization ntsuas kev ua haujlwm, nrog plaub qhov hloov kho qhov hluav taws xob qhov hluav taws xob ntawm 1000V / 2500V / 5000V / 10000V thiab kev ntsuas dav ntawm 1MΩ-1TΩ. Tsim los ntawm lub roj teeb lithium, nws muaj cov khoom siv hluav taws xob ruaj khov, muaj zog tiv thaiv kev cuam tshuam thiab tshaj li 10 teev ntawm kev ua haujlwm tas mus li, thiab tsim nyog rau kev ntsuas hluav taws xob tiv thaiv nyob rau hauv muaj zog electromagnetic cuam tshuam kev lag luam ib puag ncig raws li cov khoom siv hluav taws xob txhim khu kev qha.

Khoom Taw Qhia

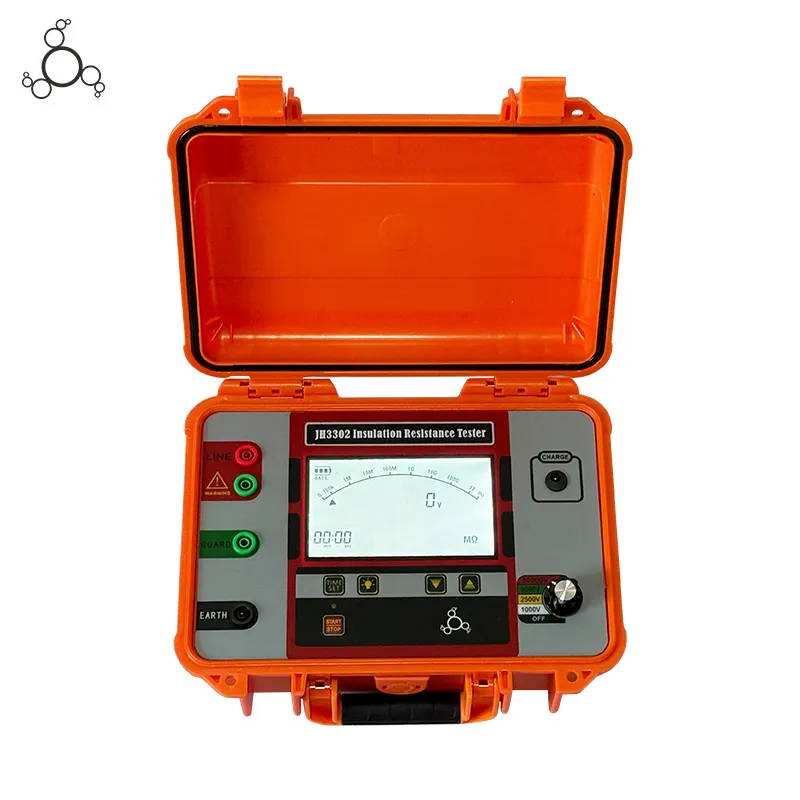

Qhov no 10kv rwb thaiv tsev tester yog ib tug kws txawj ntse ntsuas ntsuas ntawm nws tus kheej tsim rau kev lag luam rwb thaiv tsev kev soj ntsuam, tsim nrog humanized ua hauj lwm thiab siab - precision ntsuas raws li cov tub ntxhais, thiab yog ib tug tseem ceeb xeem cuab yeej rau rwb thaiv tsev cov khoom siv hluav taws xob nyob rau hauv lub hwj chim, electromechanical thiab lwm yam industries. Cov cuab yeej yog nruab nrog 5-nti loj zaub screen, thiab innovatively combines analog bar pointers nrog cov zaub, uas muaj peev xwm visually tso saib lub dynamic sib txawv ntawm cov ntaub ntawv ntsuam xyuas cov ntaub ntawv hloov thaum kom paub tseeb tias qhov kev nyeem ntawv ntawm kev ntsuas, ua rau cov txheej txheem xeem intuitive thiab controllable.

Nws yog configured nrog plaub graded tso zis voltage zog ntawm 1000V, 2500V, 5000V thiab 10000V, nrog ib tug dav kev ntsuas ntawm 1MΩ-1TΩ, thiab qhov ntsuas raug muab faib ua peb qib ntawm 5%+3dgt, 10%{g 20%+3dgt kom tau raws li qhov kev xav tau ntawm cov khoom siv hluav taws xob sib txawv. Cov cuab yeej muaj ib qho kev ua tiav ntawm kev ntsuas tsis siv neeg, uas tuaj yeem paub txog lub sijhawm ntsuas, ntsuas R15, R60 thiab R600 cov ntaub ntawv, thiab ntse hloov pauv qhov nqus piv thiab polarization Performance index, txuag qhov teeb meem ntawm phau ntawv suav thiab txhim kho kev ntsuas kev ua haujlwm.

Nrog zoo heev los tiv thaiv- cuam tshuam kev ua tau zoo, lub cuab yeej muaj qhov tso zis hluav taws xob ruaj khov thiab tuaj yeem ua haujlwm ib txwm nyob rau hauv ib puag ncig muaj zog electromagnetic cuam tshuam, kom ntseeg tau qhov tseeb thiab kev ntseeg siab ntawm cov ntaub ntawv xeem hauv kev lag luam nyuaj ntawm - qhov chaw. Kev siv lub roj teeb lithium roj teeb lub zog tsim, nws txhawb kev them rov qab, nrog lub sijhawm tos ntev ntev tshaj 10 teev, thiab yooj yim nqa rau ntawm - qhov chaw sim mobile. Kev ntsuas tam sim no tsis tsawg dua 1.0mA (thaum kuaj cov khoom ua haujlwm tsawg dua 1MΩ), thiab qhov ua haujlwm tsis zoo ntawm cov khoom siv hluav taws xob tsis pub ntau tshaj 5% nyob rau hauv 1GΩ load, ua tau raws li cov kev ntsuas kev ua haujlwm ntawm cov khoom siv hluav taws xob.

Kev ua haujlwm ntawm qhov ntsuas yog yooj yim thiab yooj yim, nrog cov nyees khawm ua haujlwm kom pom tseeb thiab muaj kev sib txuas ntawm tib neeg. Nws tuaj yeem ua tiav qhov kev sim ib txwm muaj, ntsuas lub sijhawm thiab DAR / PI kuaj los ntawm kev hloov kho cov pob qhov rooj yooj yim thiab lub pob ua haujlwm, thiab txiav tawm qhov siab -voltage fais fab mov tom qab qhov kev xeem tiav, nrog rau kev siv siab. Nruab nrog tag nrho cov txheej txheem kev sim khoom siv nrog rau siab- cov kab ntsuas hluav taws xob, qis- cov kab hluav taws xob tam sim no thiab cov xaim hauv av, nws tuaj yeem siv ncaj qha rau ntawm - qhov chaw kuaj tom qab tshem tawm. Cov khoom lag luam muaj qhov zoo tshaj plaws tom qab- kev pabcuam muag khoom, muab ib lub hlis hloov pauv thiab ib xyoo - kho dawb rau cov tsis yog{10}} teeb meem zoo ntawm tib neeg, uas lav lub sijhawm ntev - thiab kev siv twj ywm ruaj khov.

Khoom Parameter

Qauv	JH3302
Ua haujlwm fais fab	ua -hauv 12.6V/2.2AH lithium roj teeb
Cov zis tam sim no	1000V, 2500V, 5000V, 10000V
Kev ntsuas ntau	1MΩ~1TΩ
Yam tsawg kawg nkaus daws teeb meem	1KΩ
Qhov hnyav	6kg ua
Qhov tseeb	Hauv qab 100GΩ: ± (5% RD+0.1% FS) saum toj 100GΩ: ± (10% RD+0, 1% FS)
Feature	10KV High Voltage Rwb thaiv tsev Resistance Tester
Zaub	npo xim LCD

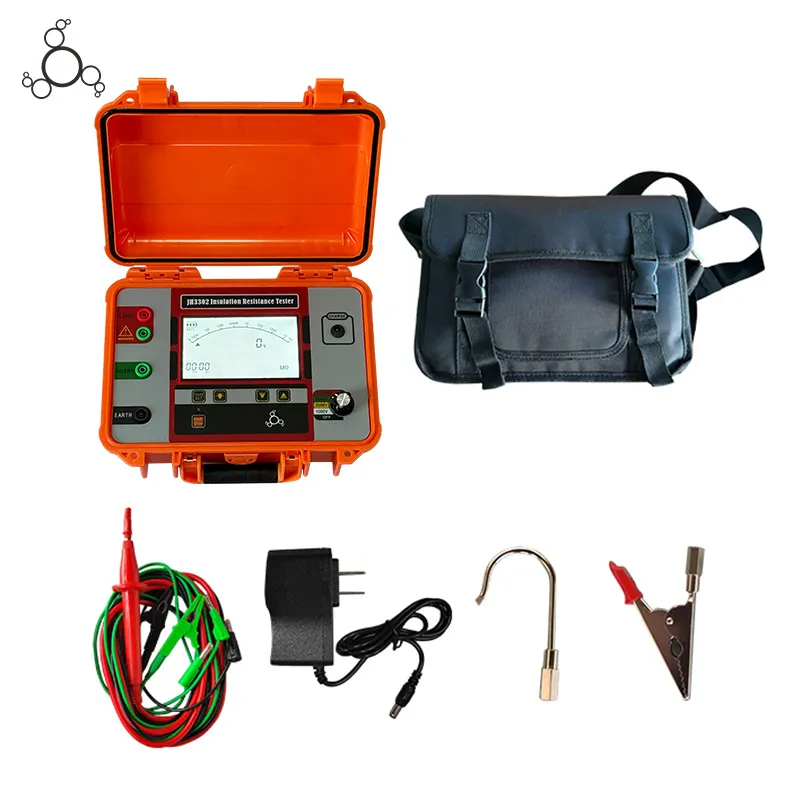

Khoom accessories

Ib lub hnab nqa nqa nqa nqa dub
Ib txheej ntawm ntsuab nplooj siab kuaj cov hlau lead nrog alligator clip
Ib txheej ntawm cov xim liab tshwj xeeb kuaj cov hmoov txhuas nrog cov kab nuv ntses
Ib txheej ntawm cov xim dub tshwj xeeb kuaj cov hlau lead nrog Alligator clip
Peb qhov kev ntsuam xyuas liab insulated (xws li nuv- kawg thiab taw tes hom)
Ib qho liab hnyav -lub luag hauj lwm tus nab qa
Ib tug dub USB cov ntaub ntawv cable
Lub hwj chim adapter nrog lub hwj chim qaum
