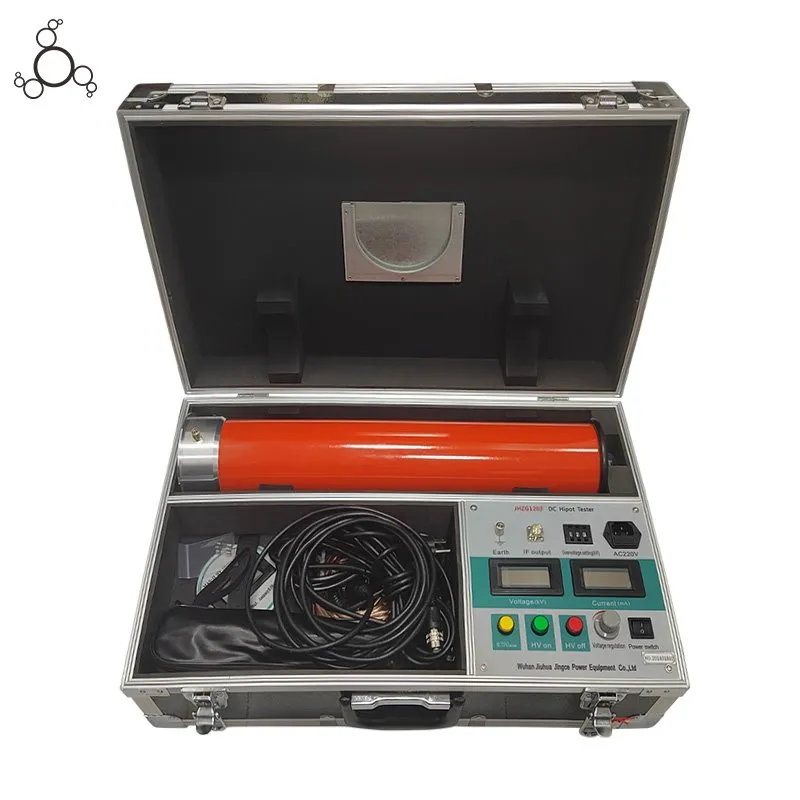

ZGS series integrated DC high-voltage generator yog lub siab -kev ntsuas hluav taws xob ntsuas nws tus kheej tsim rau siab-voltage rwb thaiv tsev tiv thaiv qhov ntsuas hluav taws xob ntawm cov khoom siv hluav taws xob. Raws li tus kws tshaj lij hluav taws xob hluav taws xob hluav taws xob, nws tau txais kev tsim hluav taws xob thoob ntiaj teb thiab kev xaiv cov khoom siv, cov khoom lag luam sib xyaw ua ke ntau yam thev naus laus zis xws li siab - zaus voltage ob npaug thiab dual kaw- lub voj kev tawm tswv yim, thiab cov txiaj ntsig ruaj khov, kev tiv thaiv zoo, kev ua haujlwm ntse thiab cov qauv sib xyaw ua ke. Nws yog dav siv rau DC siab-voltage tests ntawm zinc oxide xob laim ntes, fais fab cables, transformers, generators thiab lwm yam high-voltage hluav taws xob khoom nyob rau hauv fais fab nroj tsuag, substations, fais fab kev soj ntsuam tsev thiab lwm yam sij hawm, thiab yog ib qho tseem ceeb tshaj plaws kev xeem cov cuab yeej rau lub hwj chim system rwb thaiv tsev tiv thaiv kev ntsuam xyuas thiab vlf hluav taws xob kuaj scenarios.
Cov yam ntxwv ntawm cov khoom
Stable tso zis voltage
Txais siab- zaus voltage ob npaug Circuit Court, ua ke nrog qhov tseeb PWM pulse width modulation technology thiab voltage-tam sim no dual kaw-loop tawm tswv yim thev naus laus zis, zoo txhim kho lub zog mov thiab thauj khoom tus nqi, paub qhov muaj zog voltage thiab qis ripple yam (tsawg dua los yog sib npaug rau 0.5%), thiab xyuas kom meej cov ntaub ntawv.
Kev tiv thaiv zoo & ntseeg tau
Nruab nrog xoom txoj hauj lwm tiv thaiv, tiv thaiv overvoltage, tiv thaiv overcurrent thiab kev tiv thaiv tawg. Kev tiv thaiv Circuit Court siv nanosecond- qib tshwj xeeb sensors nrog ceev thiab txhim khu kev qha, uas tuaj yeem tiv thaiv tus kheej kev nyab xeeb ntawm cov neeg ua haujlwm thiab qhov tsis zoo ntawm cov ntsuas ntsuas thiab cov khoom siv kuaj.
Intelligent 0.75U Test Function
Ntxiv ib qho -qhov tseem ceeb ntse siab -precision 0.75U ua haujlwm khawm. Nias lub khawm kom hloov qhov hluav taws xob thiab tam sim no mus rau 0.75U xeev, uas yog tsim tshwj xeeb rau kev sim ntawm zinc oxide xob laim ntes thiab ua kom zoo dua qhov kev sim.
Zero- pib Boost nrog High Precision
Lub boost potentiometer tau txais kev xa tawm ntau-tig potentiometer kom paub txog xoom- pib boost, cov txheej txheem boost yog du yam tsis muaj kev dhia tam sim ntawd, thiab qhov kev hloov pauv voltage yog siab, uas ua tau raws li qhov kev thov zoo ntawm high-voltage test.
Yooj yim Overvoltage Teeb
Kev teeb tsa overvoltage txais cov kev hloov pauv digital, uas yooj yim rau kev khiav lag luam, hloov kho yooj yim, thiab muaj kev teeb tsa siab, zam qhov kev ua yuam kev ntawm kev hloov kho ib txwm muaj thiab ua kom muaj kev nyab xeeb ntawm cov txheej txheem xeem.
Integrated Tsim kom yooj yim nqa
Txais kev tsim qauv tsim qauv, tus tswv tsev thiab qhov hluav taws xob ob npaug ntawm lub tog raj kheej tau muab tso rau hauv ib lub chassis. Imported siab - zaus thiab siab -voltage rectifier diodes yog siv los ua qhov voltage ob npaug rau lub tog raj kheej compact hauv ntim thiab lub teeb hauv qhov hnyav (9-10kg). Lub zuag qhia tag nrho yog optimized, lub efficiency yog zoo dua, thiab nws yog yooj yim rau sab hauv tsev thiab sab nraum zoov ntawm-site mobile xeem.
Kev ntseeg siab & Environmental Adaptability
Cov khoom tseem ceeb raug xaiv los ntawm qhov siab -kev ua tau zoo tuaj txawv teb chaws, thiab sab nrauv ntawm qhov hluav taws xob ob npaug ntawm lub tog raj kheej yog coated nrog cov ntaub ntawv tshwj xeeb insulating, uas muaj cov khoom siv hluav taws xob zoo heev, muaj zog ya raws thiab tsis muaj hluav taws xob to. Nws tuaj yeem ua haujlwm ruaj khov hauv ib puag ncig ntawm -10 ~ 40℃thiab txheeb ze av noo tsawg dua lossis sib npaug li 85% (tsis muaj condensation), hloov mus rau ntau yam kev sim ntawm qhov chaw.
Humanized Operation Interface
Lub ntsuas hluav taws xob interface yog nruab nrog ntau yam kev ua haujlwm nyees khawm nrog cov qauv tsim nyog thiab cov cim meej. Kev ua haujlwm logic yog yooj yim thiab yooj yim to taub, tsis muaj kev cob qhia kev cob qhia yog xav tau rau kev pib sai, uas txo cov kev ua haujlwm nyuaj ntawm cov neeg sim thiab txhim kho qhov kev sim siab.Qhov no lub tshuab hluav taws xob ultra high voltage tswj kev ua haujlwm yooj yim thaum xa high-voltage kev ua tau zoo, haum rau ntau yam kev kuaj hluav taws xob ua haujlwm.
Khoom Parameter
|
Specification |
120/2 |
120/5 |
|
Rated Voltage (kV) |
120 |
120 |
|
Rated tam sim no (mA) |
2 |
5 |
|
Rated zog (W) |
240 |
600 |
|
Qhov hnyav tag nrho (kg) |
10 |
|
|
Tag nrho Volume (mm³) |
565*390*190 |
|
|
Ob chav siab lub tog raj kheej qhov siab (mm) |
535 |
|
|
Voltage raug |
± (1.0% nyeem ± 2 lo lus) |
|
|
Tso zis tam sim no raug |
± (1.0% nyeem ± 2 lo lus) |
|
|
Ripple factor |
Tsawg dua lossis sib npaug li 0.5% |
|
|
Txoj kev ua haujlwm |
Kev siv tsis tu ncua, ntsuas load rau 30 feeb |
|
|
Muaj peev xwm tshaj |
Qhov tsis muaj -load voltage tuaj yeem tshaj qhov ntsuas hluav taws xob los ntawm 10% thiab siv rau 10 feeb |
|
|
Qhov siab tshaj plaws them tam sim no yog 1.25 npaug ntawm qhov ntsuas tam sim no |
||
|
Fais fab mov |
AC220V ± 10% 50HZ |
|
|
Ib puag ncig ua haujlwm |
Ib puag ncig: -10-40 degree |
|
|
txheeb ze humidity: tsis ntau tshaj 85% ntawm chav tsev kub ntawm 25℃(tsis condensation) |
||
|
Qhov siab: Hauv qab 1500 meters |
||

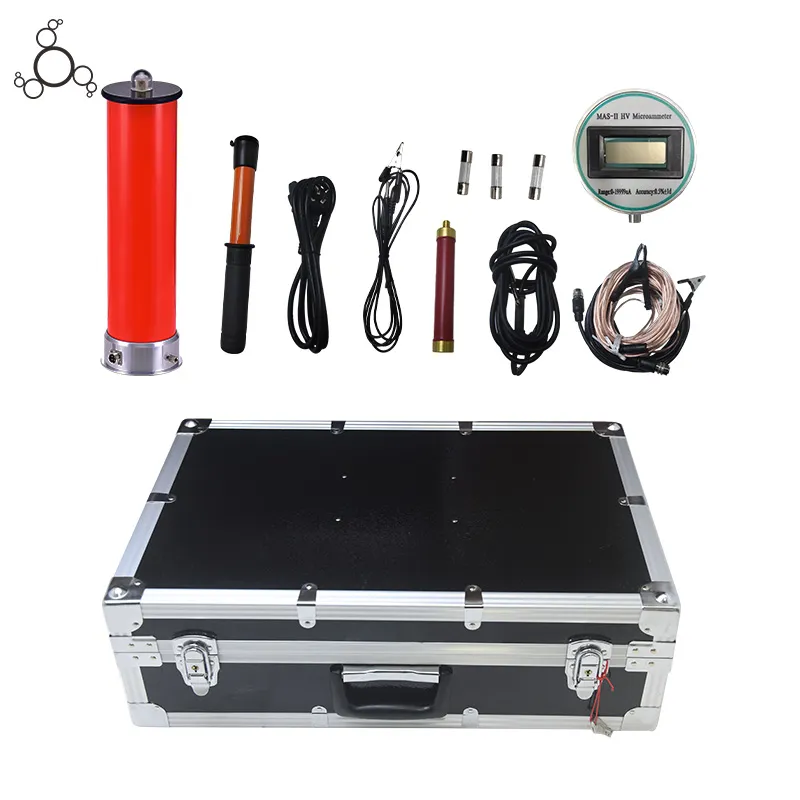

Khoom Accessories
|
Sau npe |
Kev piav qhia |
Chav tsev |
|
Tus tswv |
/ |
1 pcs |
|
Kev kub siab ob npaug ntawm lub tog raj kheej |
/ |
1 pcs |
|
Microampere ntsuas |
/ |
1 pcs |
|
Tshem tawm rod |
/ |
1 pcs |
|
Tam sim no limit resistor |
/ |
1 pcs |
|
High voltage kab |
/ |
1 pcs |
|
Cov kab hluav taws xob |
/ |
1 pcs |
|
Dedicated plaub core txuas hlau |
/ |
1 pcs |
|
Hauv av hlau |
/ |
1 pcs |
|
Fuse |
3A |
2 pcs |
|
Cov lus qhia |
/ |
1 pcs |
|
Kev tshuaj ntsuam xyuas |
/ |
1 pcs |
|
Daim ntawv pov thawj ntawm conformity |
/ |
1 pcs |
