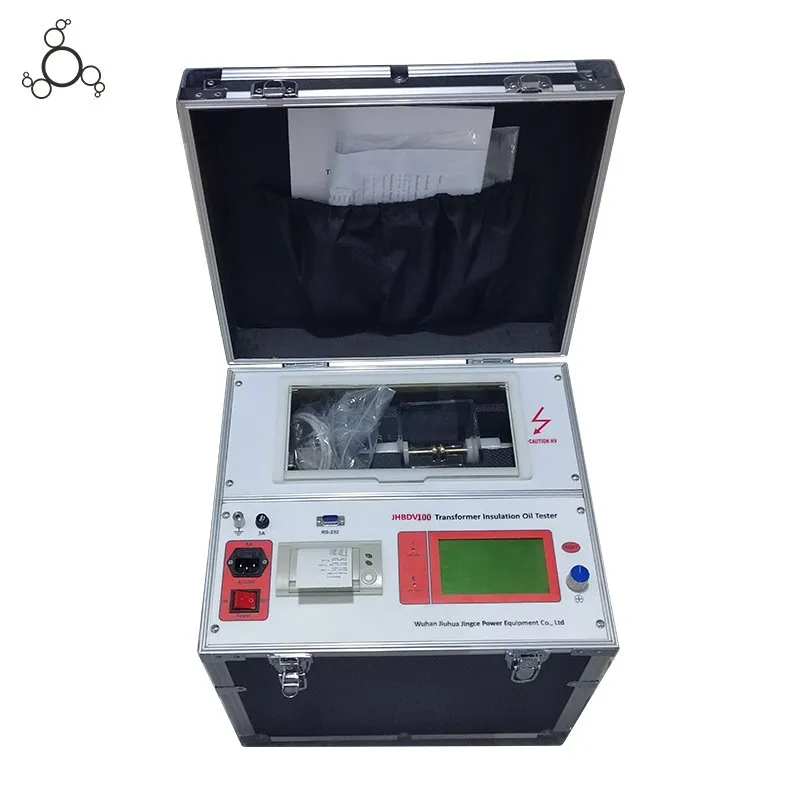

JHBDV100 yog cov kws tshaj lij transformer roj tiv thaiv tester tsim los rau kev ntsuas hluav taws xob tawg ntawm cov roj transformer, uas yog ib qho tseem ceeb rau cov khoom siv hluav taws xob ntsuas hluav taws xob. Nrog rau qhov tso zis voltage ntau ntawm 0 ~ 100kV AC thiab qhov ntsuas hluav taws xob nce ntawm 2kV / s ± 10%, nws ua tau raws li qhov kev sim ntsuas ntawm cov roj hluav taws xob rwb thaiv tsev.

Khoom Taw Qhia

JHBDV100 transformer roj BDV tester yog tshwj xeeb hauv kev ntsuas qhov tawg ntawm cov roj insulating, muab cov ntaub ntawv txhim khu kev qha rau kev txiav txim rau lub xeev rwb thaiv tsev ntawm cov roj transformer. Nws txhawb peb hom kev xeem: IEC156/IS6792/BS5874 tus qauv xeem, tus neeg siv-txoj kev xeem, thiab cov ntaub ntawv pov thawj, ua tau raws li ntau yam kev xeem yuav tsum tau ua hauv ntau yam xwm txheej. Cov cuab yeej muaj qhov ntsuas siab tshaj plaws ntawm 9 lub sijhawm, hloov kho lub sijhawm sib tw thiab tos lub sijhawm (0 ~ 999s), thiab qhov kev xeem yuam kev tsis pub ntau tshaj 3% hauv 10 ~ 100kV, kom ntseeg tau siab -cov txiaj ntsig kev xeem raug. Nrog cov qauv compact, qhov hnyav ntawm 28kg, thiab qhov loj ntawm 420 × 380 × 410mm, nws yog ib qho yooj yim nqa thiab ua haujlwm ntawm -site. Nws kuj tseem txhawb nqa cov ntaub ntawv txuag, luam ntawv, thiab PC kev sib txuas upload, ua rau nws yog qhov zoo tshaj plaws kev ntsuas ntsuas rau cov fais fab nroj tsuag, substations, thiab lub tsev kuaj hluav taws xob.

Khoom Parameter

Qauv	JHBDV80
Output voltage	AC 0-80 KV
Tus nqi ntawm voltage nce	2 KV / s ± 10%
Ntsuas precision	3%RDG+0.3%FS
Test lub sij hawm	1~9
Mixing lub sij hawm teem	0 ~ 99 thib ob
Tos lub sij hawm teem	0-9 feeb 59 vib nas this
Muaj peev xwm cia siab tshaj plaws	100 pawg ntawm cov ntaub ntawv xeem
Cov qauv ntsuas	IEC60156
Zaub	256 * 128 LCD zaub
Rated fais fab mov	AC 220V ± 10% 50Hz / 60Hz
Ib puag ncig kub	0-50 degree
txheeb ze humidity	Tsawg dua lossis sib npaug li 80% RH
Loj	420 × 380 × 410mm3
Qhov hnyav	28kg ua
Roj Nkoj	1
Lub tshuab luam ntawv	Yog lawm
