Cov khoom no (tom qab no hu ua YDJ hom fais fab zaus AC tiv taus qhov ntsuas hluav taws xob ua tiav cov khoom siv) yog ib yam tshiab ntawm cov khoom tsim raws li TDM (G) series lub teeb yuag AC / DC siab -voltage fais fab zaus AC withstand voltage test tiav ntaus ntawv, uas tau zoo heev txhim kho nyob rau hauv lub hauv paus ntawm cov khoom qub zoo sib xws raws li Mechanical Frequency Ministry thiab Electric withstand voltage xeem ua tiav cov cuab yeej". Cov khoom no muaj cov yam ntxwv ntawm me me, lub teeb yuag, compact qauv, ua tiav kev ua haujlwm, muaj zog thoob ntiaj teb, thiab siv tau yooj yim. Tshwj xeeb tshaj yog tsim nyog rau kev ntsuam xyuas lub zog hluav taws xob ntawm ntau yam siab - cov khoom siv hluav taws xob hluav taws xob, cov khoom siv hluav taws xob, thiab cov khoom siv rwb thaiv tsev nyob rau hauv lub zog zaus lossis DC high voltage hauv cov tshuab hluav taws xob, cov chaw lag luam thiab cov mining, cov chaw tshawb fawb tshawb fawb, thiab lwm yam. Nws yog ib qho tseem ceeb thiab cov cuab yeej tseem ceeb hauv high -voltage test.

Cov yam ntxwv ntawm cov khoom

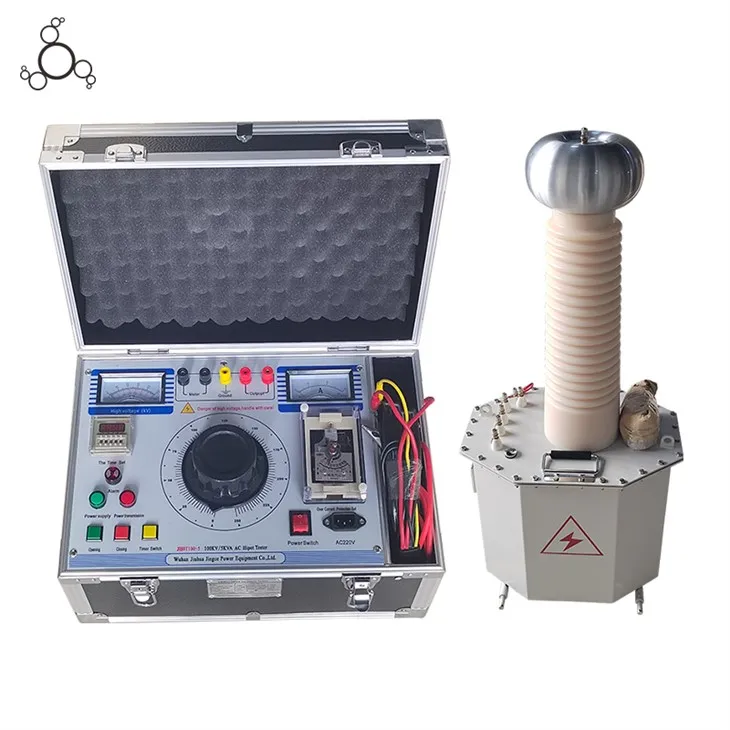

Lub 50kV 5kVA AC Thiab DC Hipot Tester yog ib qho kev hloov kho siab tshaj -cov cuab yeej ntsuas kev ua tau zoo tau los ntawm TDM(G) thiab YDJ series platforms, zoo kawg nkaus ua haujlwm tau zoo ntawm ob qho tib si series thiab optimized rau ntawm -qhov chaw nrhiav kom tau efficiency thiab multi-scenario adaptability.

Cov cuab yeej ua ke nrog AC lub zog zaus tiv taus qhov hluav taws xob thiab DC siab -voltage to test functions in one, and is specially developed for insulating medium detection while undertaking parent high-voltage equipment insulation tests, which can know professional dielectric oil testing with high precision and stability.

Nws muaj kev ua tau zoo nthuav dav, nrog rau kev tsim-hauv 200V series kais txhawb nqa ntau-unit cascade rau cov zis hluav taws xob ntau dua, thiab kho tau 5-15kV nruab nrab-voltage kais, uas tuaj yeem ua raws li qhov yuav tsum tau ua ntawm cov khoom siv hluav taws xob sib txawv thiab cov qauv roj insulating.

Nrog rau kev xeem siab precision thiab txhim khu kev qha cov ntaub ntawv tawm tswv yim, cov cuab yeej tuaj yeem muab cov qauv ntsuas kev txhawb nqa rau lub zog transformer roj kuaj thiab hluav taws xob transformer roj kuaj hauv lub zog ua haujlwm thiab kev saib xyuas, sau qhov sib txawv ntawm kev sib xyaw ua ke ntawm cov khoom siv thiab nruab nrab insulating.

Raws li qhov tshwj xeeb siab- qhov ntsuas hluav taws xob ntsuas hluav taws xob rau lub zog, mining thiab kev tshawb fawb txog kev tshawb fawb, nws yog ib qho tseem ceeb ntawm cov cuab yeej txhawb nqa kev txhim kho qhov kev nkag siab ntawm siab - qhov ntsuas hluav taws xob tiv thaiv thiab ua kom muaj kev nyab xeeb ntawm tag nrho cov khoom siv hluav taws xob thiab nws qhov nruab nrab insulating.

Khoom Parameter

Qauv	Muaj peev xwm	Siab voltage (KV)		High voltage tam sim no (mA)		Tsawg voltage input		Kev hloov pauv	Kub nce degree
Qauv	(KVA)	AC	DC	AC	DC	Qhov voltage (V)	Tam sim no (A)	Siab / instrument	5 feeb
TDM(G) 1.5/50	1.5	50	70	30	15	200	7.5	500	15
TDM(G) 3/50	3	50	70	60	15	200	15	500	15
TDM(G) 5/50	5	50	70	100	15	200	25	500	15
TDM(G) 10/50	10	50	70	200	50	200	50	500	15
TDM(G) 20/50	20	50	70	400	100	380	53	500	15
TDM(G) 30/50	30	50	70	600	100	380	79	500	15
TDM(G) 40/50	40	50	70	800	105	380	105	500	15
TDM (G) 50/50	50	50	70	1000	100	380	132	500	15
TDM(G) 10/100	10	100	140	100	50	200	50	1000	15
TDM(G) 20/100	20	100	140	200	100	380	53	1000	15
TDM(G) 30/100	30	100	140	300	100	380	79	1000	15
TDM (G) 40/100	40	100	140	400	100	380	105	1000	15
TDM (G) 50/100	50	100	140	500	100	380	132	1000	15
TDM(G) 20/150	20	150	210	133	100	380	53	1000	15
TDM(G) 30/150	30	150	210	200	100	380	79	1000	15
TDM (G) 40/150	40	150	210	267	100	380	105	1000	15
TDM (G) 50/150	50	150	210	333	100	380	132	1000	15
TDM (G) 100/150	100	150	210	667	150	380	263	1000	15
