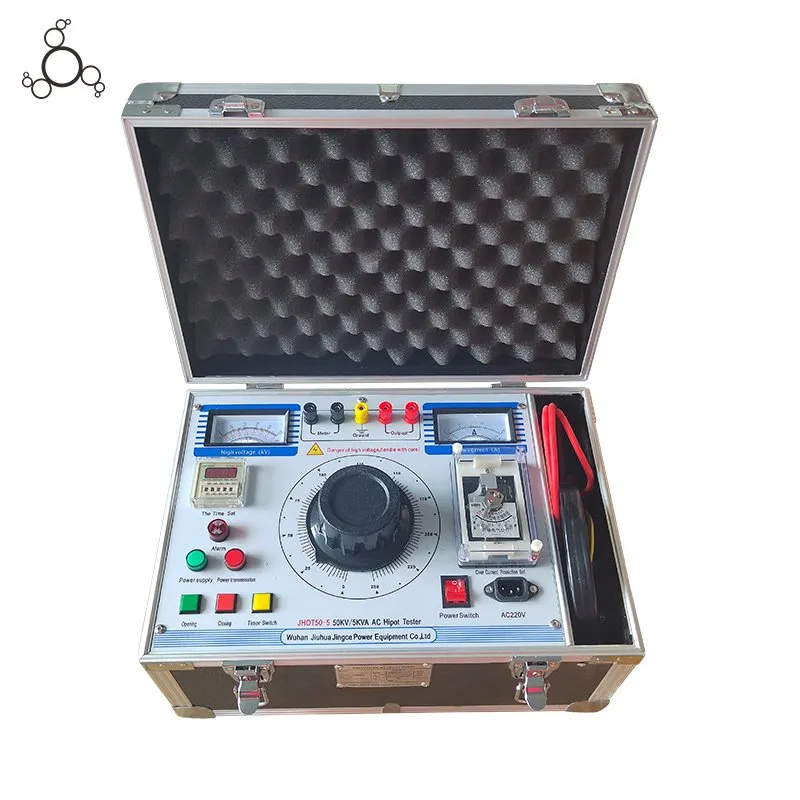

Lub 50kV 5kVA AC Thiab DC Hipot Tester yog lub siab -kev ua haujlwm tseem ceeb ntawm TDM(G) series AC / DC fais fab zaus nrog cov khoom siv ntsuas hluav taws xob, tsim ua raws li lub teb chaws tus qauv JB/T 9641-1999 thiab fais fab kev lag luam tus qauv DL/T804}20. Txais siv cov tshuab electromagnetic induction thiab ib nrab -wave rectification technology, nws integrates AC thiab DC high-voltage withstand voltage testing functions, thiab tshwj xeeb tshaj yog tsim los rau rwb thaiv tsev lub zog nrhiav kom tau high{12}}voltage hluav taws xob cov khoom, cov khoom, insulating cov ntaub ntawv, raws li zoo raws li insulating roj soj ntsuam nyob rau hauv lub hwj chim systems, industrial thiab mining kev tshawb fawb. Nrog rau cov roj compact-immersed qauv, nws outputs 50kV rated AC high voltage thiab 70kV DC high voltage, muab cov ntaub ntawv xeem raug thiab nyab xeeb rau high-voltage tiv thaiv thiab xa mus kuaj, thiab yog ib qho tseem ceeb high-voltage xeem ntsuas rau lub hwj chim system ua hauj lwm thiab txij nkawm.

Cov yam ntxwv ntawm cov khoom

1. Integrated AC/DC Test, Multi-ua haujlwm thov

Integrate fais fab zaus AC tiv taus voltage thiab DC siab -voltage to test functions; pub dawb hloov ntawm ob hom los ntawm qhov siab -voltage silicon pawg luv luv- Circuit Court pas nrig, thiab tseem muaj feem xyuam rau kev ntsuas roj hluav taws xob kom tau raws li kev sib txawv siab -voltage rwb thaiv tsev xav tau ntawm cov khoom sib txawv nrog ib lub tshuab.

2. Roj-Structure immersed, ruaj khov thiab txhim khu kev qha

Txais cov roj kev tshaj lij-immersed rwb thaiv tsev tsim nrog transformer roj raws li nruab nrab, zoo heev rwb thaiv tsev thiab tshav kub dissipation, kub nce tsuas yog 15℃nyob rau hauv 5min rated load, tsis muaj roj to thiab muaj zog noo noo tsis kam rau complex ntawm - qhov chaw ib puag ncig.

3. High Test Accuracy, Precise Parameter Output

Voltage thiab tam sim no ntsuas qhov tseeb txog ± (1.0% nyeem + 2 lej); kev tiv thaiv sab nraud-capacitance voltage divider xaiv tau los tshem tawm cov capacitance nce / voltage poob cuam tshuam, kom ntseeg tau cov ntaub ntawv raug rau kev kuaj xyuas cov roj insulating thiab cov khoom siv hluav taws xob.

4. Yooj yim Cascade Expansion, Dav Adaptability

Nruab nrog 200V series kais dej, 2-3 units tuaj yeem ua rau cov zis hluav taws xob ntau dua (AC 150kV / DC 210kV); customizable 5-15kV nruab nrab-voltage kais rau high-voltage motor test, muaj zog expandability rau txawv sim scenarios.

5. Kev tsim qauv tsim, yooj yim ua haujlwm & nqa

Tib -frame core coaxial winding qauv txo cov hlau nplaum sib nqus; octagonal plhaub nrog cov ntsiab lus dav dav dav dav, me me thiab lub teeb yuag, yooj yim rau ntawm - qhov chaw sim mobile thiab ua haujlwm ceev yam tsis muaj kev cob qhia nyuaj.

6. Kev tiv thaiv kev nyab xeeb, lav kev kuaj kev nyab xeeb

Txhim khu kev ntseeg hauv av tsim rau siab -voltage tail, casing thiab ntsuas winding; sab nraud tam sim no- txwv cov resistor, pob qhov sib txawv tiv thaiv muaj rau kev tiv thaiv overvoltage / overcurrent, tiv thaiv cov cuab yeej thiab cov khoom sim nrog rau kev sim roj transformer.

7. Muaj zog Load Adaptability, Wide Application Scope

Unlimited tested khoom capacitance, txhawb 1.5x rated tam sim no them sai sai rau cov khoom loj -capacitance (kab, capacitors); dav siv nyob rau hauv lub hwj chim, mining thiab scientific kev tshawb fawb teb rau tag nrho cov hom ntawm high -voltage khoom thiab insulating nruab nrab ntsuas.

Khoom Parameter

Qauv	Muaj peev xwm	High voltage (KV)		High voltage tam sim no (mA)		Tsawg voltage input		Hloov pauv piv	Kub nce degree
Qauv	(KVA)	AC	DC	AC	DC	Qhov voltage (V)	Tam sim no (A)	Siab / instrument	5 feeb
TDM(G) 1.5/50	1.5	50	70	30	15	200	7.5	500	15
TDM(G) 3/50	3	50	70	60	15	200	15	500	15
TDM(G) 5/50	5	50	70	100	15	200	25	500	15
TDM(G) 10/50	10	50	70	200	50	200	50	500	15
TDM(G) 20/50	20	50	70	400	100	380	53	500	15
TDM(G) 30/50	30	50	70	600	100	380	79	500	15
TDM(G) 40/50	40	50	70	800	105	380	105	500	15
TDM (G) 50/50	50	50	70	1000	100	380	132	500	15
TDM(G) 10/100	10	100	140	100	50	200	50	1000	15
TDM(G) 20/100	20	100	140	200	100	380	53	1000	15
TDM(G) 30/100	30	100	140	300	100	380	79	1000	15
TDM (G) 40/100	40	100	140	400	100	380	105	1000	15
TDM (G) 50/100	50	100	140	500	100	380	132	1000	15
TDM(G) 20/150	20	150	210	133	100	380	53	1000	15
TDM(G) 30/150	30	150	210	200	100	380	79	1000	15
TDM (G) 40/150	40	150	210	267	100	380	105	1000	15
TDM (G) 50/150	50	150	210	333	100	380	132	1000	15
TDM (G) 100/150	100	150	210	667	150	380	263	1000	15
