Cov koob no suav nrog plaub tus qauv ywj pheej: 120kV / 2mA, 120kV / 3mA, 120kV / 5mA, 120kV / 10mA DC high voltage generators. Lawv yog cov khoom siv txav tau yooj yim, ruaj khov, thiab kev nyab xeeb-cov khoom siv tiv thaiv rau DC tiv thaiv qhov ntsuas hluav taws xob thiab qhov hluav taws xob tam sim no ntawm cov khoom siv hluav taws xob. Kev siv siab- zaus voltage ob npaug thiab PWM tswj, lawv muaj qhov qis qis, qhov tseeb siab, thiab kev ua haujlwm yooj yim, zoo tagnrho rau ntawm - qhov chaw thiab kev sim kuaj.
Khoom Taw Qhia
Qhov no 120kV DC high voltage generator series yog tsim nyob rau hauv txoj kab nrog DL / T848.1-2004 thiab lwm cov qauv kev lag luam. Nws muaj plaub yam kev ywj pheej tam sim no kom tau raws li cov kev xav tau sib txawv. Tag nrho cov qauv txais yuav imported IGBT, dual kaw-loop tawm tswv yim, thiab kev sib xyaw qauv, kom ruaj khov 0-120kV adjustable tso zis nrog ripple Tsawg dua los yog sib npaug rau 0.5%.
Txhua tus qauv los nrog kev tiv thaiv tag nrho: xoom txoj hauj lwm, overvoltage, overcurrent, thiab kev tiv thaiv kev tawg. Nws yog nruab nrog 0.75UDC1mA ib qho tseem ceeb muaj nuj nqi rau kev ntsuas hluav taws xob ntes, cov duab digital, thiab qhov tseeb tshaj qhov teeb tsa. Lub teeb yuag thiab nqa tau yooj yim, cov koob no tau siv dav hauv lub zog, kev tsheb ciav hlau, kev tsuas, thiab petrochemical teb rau kev ntsuas rwb thaiv tsev ntawm cables, transformers, generators, thiab ntes.
Khoom Parameter
|
Specification |
120/2 |
120/5 |
|
Rated Voltage (kV) |
120 |
120 |
|
Rated tam sim no (mA) |
2 |
5 |
|
Rated zog (W) |
240 |
600 |
|
Qhov hnyav tag nrho (kg) |
10 |
|
|
Tag nrho Volume (mm³) |
565*390*190 |
|
|
Ob chav siab lub tog raj kheej qhov siab (mm) |
535 |
|
|
Voltage raug |
± (1.0% nyeem ± 2 lo lus) |
|
|
Tso zis tam sim no raug |
± (1.0% nyeem ± 2 lo lus) |
|
|
Ripple factor |
Tsawg dua lossis sib npaug li 0.5% |
|
|
Txoj kev ua haujlwm |
Kev siv tsis tu ncua, ntsuas load rau 30 feeb |
|
|
Muaj peev xwm tshaj |
Qhov tsis muaj -load voltage tuaj yeem tshaj qhov ntsuas hluav taws xob los ntawm 10% thiab siv rau 10 feeb |
|
|
Qhov siab tshaj plaws them tam sim no yog 1.25 npaug ntawm qhov ntsuas tam sim no |
||
|
Fais fab mov |
AC220V ± 10% 50HZ |
|
|
Ib puag ncig ua haujlwm |
Ib puag ncig: -10-40 degree |
|
|
txheeb ze humidity: tsis ntau tshaj 85% ntawm chav tsev kub ntawm 25℃(tsis condensation) |
||
|
Qhov siab: Hauv qab 1500 meters |
||

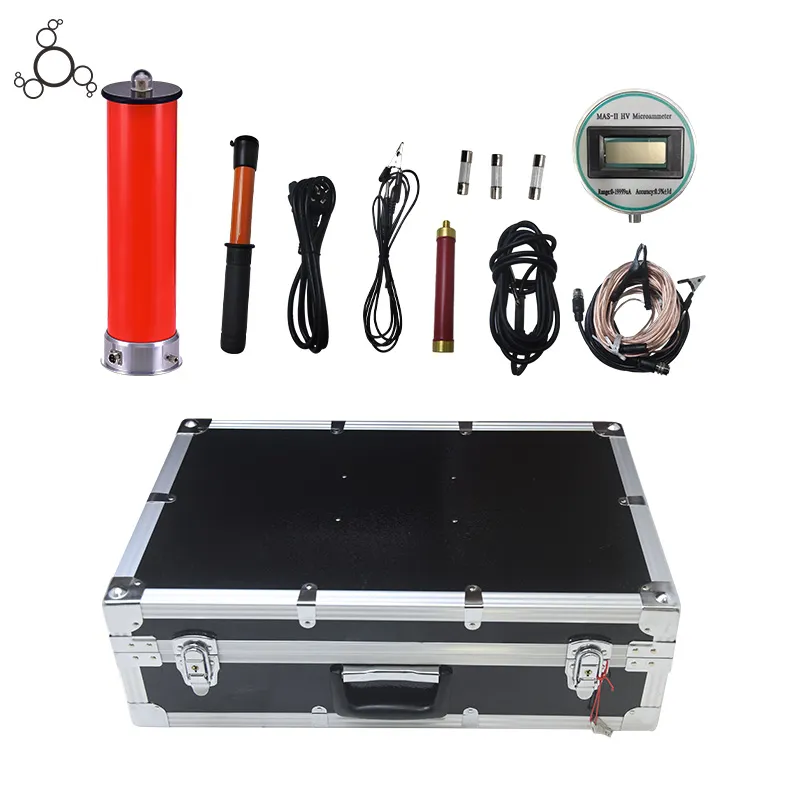

Khoom accessories
|
Sau npe |
Kev piav qhia |
Chav tsev |
|
Tus tswv |
/ |
1 pcs |
|
Kev kub siab ob npaug ntawm lub tog raj kheej |
/ |
1 pcs |
|
Microampere ntsuas |
/ |
1 pcs |
|
Tshem tawm rod |
/ |
1 pcs |
|
Tam sim no txwv resistor |
/ |
1 pcs |
|
High voltage kab |
/ |
1 pcs |
|
Cov kab hluav taws xob |
/ |
1 pcs |
|
Dedicated plaub core txuas hlau |
/ |
1 pcs |
|
Hauv av hlau |
/ |
1 pcs |
|
Fuse |
3A |
2 pcs |
|
Cov lus qhia |
/ |
1 pcs |
|
Kev tshuaj ntsuam xyuas |
/ |
1 pcs |
|
Daim ntawv pov thawj ntawm conformity |
/ |
1 pcs |
