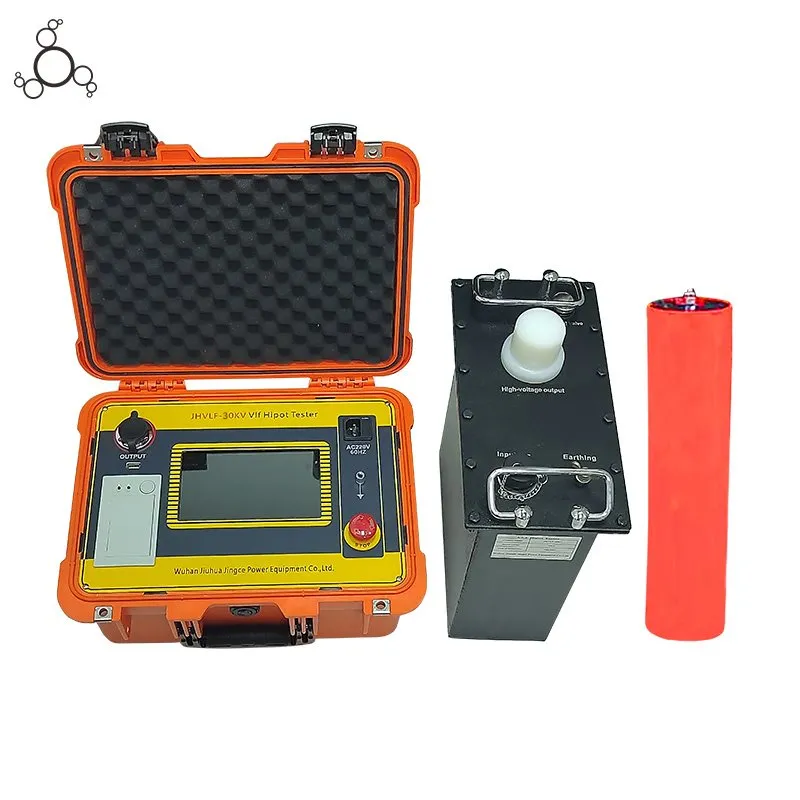

Cov koob no suav nrog tsib tus qauv ywj pheej: 30kV, 40kV, 50kV, 60kV, 80kV vlf tester. Lawv yog cov kws tshaj lij 0.1Hz ultra- tsis tshua muaj zaus AC tiv taus cov khoom siv ntsuas hluav taws xob rau cov fais fab cables, lub tshuab hluav taws xob, lub cev muaj zog thiab cov khoom siv hluav taws xob. Nrog lub teeb yuag, yooj yim xaim, kev tiv thaiv tag nrho thiab ntse kov npo tswj, lawv yog qhov zoo tagnrho rau kev ntsuas kev ntsuas hluav taws xob hauv teb thiab kuaj.
Khoom Taw Qhia
Cov koob no yog ib qho kev txhim khu kev qha vlf hipot tov tsim raws li DL / T 849.4-2004 tus qauv. Nws muab tsib qhov kev xaiv qhov ntsuas hluav taws xob kom ua tau raws li qhov kev xeem sib txawv. Txais siv hluav taws xob hloov tshuab, nws tso tawm cov qauv sine yoj, nta lub zog ua haujlwm siab, tsis tshua muaj suab nrov thiab lub neej ua haujlwm ntev.
Cov cuab yeej siv ARM7 microcomputer tswj thiab 7-nti kov npo, paub txog cov txheej txheem kuaj tsis siv neeg. Nws muaj tag nrho overvoltage, overcurrent thiab thaum muaj xwm ceev nres tiv thaiv, nrog lub sij hawm teb tsawg dua los yog sib npaug rau 10ms. Raws li cov txheej txheem ntawm kev ua haujlwm siab voltage vlf hipot cov cuab yeej, nws txhawb nqa cov ntaub ntawv khaws cia, luam ntawv thiab kev sib txuas lus USB. Piv nrog rau cov khoom siv ib txwm siv, qhov no vlf ac hipot tester muaj qhov me me, sib zog dua thiab tsis muaj kev puas tsuaj, dav siv hauv lub zog, kev lag luam thiab mining, railway thiab petrochemical industries.
Khoom Parameter
|
Qauv |
Rated Voltage |
Thauj khoom |
Fuse |
Qhov hnyav |
|
30 KV / 1.1 TSI |
30kv ua |
0.1Hz, Tsawg dua lossis sib npaug li 1.1µF |
8A |
Controller: 6Kg |
|
0.05Hz, Tsawg dua lossis sib npaug li 2.2µF |
||||
|
(Peak Value) |
Qhov hnyav: 20Kg |
|||
|
0.02Hz, Tsawg dua lossis sib npaug li 5.5µF |
||||
|
60kV/1.1 TSI |
60kv ua |
0.1Hz, Tsawg dua lossis sib npaug li 1.1µF |
10A |
Controller: 6Kg |
|
0.05Hz, Tsawg dua lossis sib npaug li 2.2µF |
||||
|
(Peak Value) |
Lub cev muaj zog: 45Kg |
|||
|
0.02Hz, Tsawg dua lossis sib npaug li 5.5µF |
||||
|
80KV / 0.5 hli |
80kv ua |
0.1Hz, Tsawg dua lossis sib npaug li 1.1µF |
20A |
Controller: 6Kg |
|
0.05Hz, Tsawg dua lossis sib npaug li 2.2µF |
||||
|
(Peak Value) |
Qhov hnyav: 50Kg |
|||
|
0.02Hz, Tsawg dua lossis sib npaug li 5.5µF |
||||
|
90 KV / 0.5 hli |
90kv ua |
0.1Hz, Tsawg dua lossis sib npaug li 1.1µF |
20A |
Controller: 6Kg |
|
0.05Hz, Tsawg dua lossis sib npaug li 2.2µF |
||||
|
(Peak Value) |
zog: 55Kg |
|||
|
0.02Hz, Tsawg dua lossis sib npaug li 5.5µF |

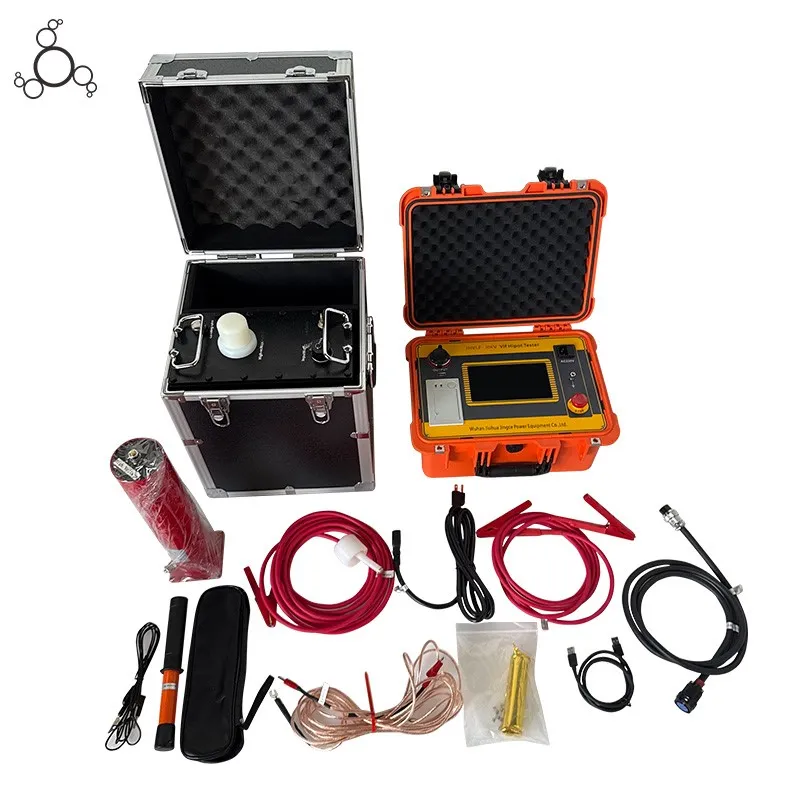

Khoom accessories
- Ib lub txiv kab ntxwv portable host case nrog ua -hauv VLF hipot tester main unit
- Ib tug dub aluminium alloy tiv thaiv rooj plaub nrog ua - nyob rau hauv high voltage generator module
- Ib tug liab high voltage silicone cable nrog alligator clips
- Ib tug liab high voltage xeem cable nrog insulating davhlau ya nyob twg
- Ib tug dub fais fab cable nrog US standard plug
- Ib tug dub teeb liab kis tau tus mob cable nrog BNC connector
- Ib txheej ntawm tooj liab xaim kuaj ua rau cov kab nuv ntses
- Ib tug liab cylindrical high voltage capacitor
- Ib tug high voltage paug pas nrig nrog insulating kov
- Ib tug me me dub auxiliary cable
- Ib kub-plated cylindrical test connector
- Ib lub hwj chim adapter nrog lub hwj chim qaum
- Cov txheej txheem vlf no ua tiav nrog txhua yam khoom siv tsim nyog rau ntawm - chaw ua haujlwm
Xa, Shipping thiab Pab
FAQ
Q: Muaj pes tsawg tus qauv nyob rau hauv no series?
A: Tsib tus qauv ywj pheej: 30kV, 40kV, 50kV, 60kV, 80kV.
Q: Dab tsi yog qhov tso zis zaus?
A: Txhawb 0.1Hz, 0.05Hz, 0.02Hz peb- zaus xaiv.
Q: Cov haujlwm tiv thaiv yog dab tsi?
A: Kev tiv thaiv overvoltage, tiv thaiv overcurrent, kev tiv thaiv thaum muaj xwm ceev, muaj kev nyab xeeb thiab txhim khu kev qha.
Q: Nws puas yooj yim rau nqa rau ntawm - siv qhov chaw?
A: Yog lawm, cais cov qauv, lub teeb yuag, yooj yim xaim, tsim nyog rau kev sim teb.
Q: Nws puas txhawb nqa cov ntaub ntawv kaw thiab luam ntawv?
A: Yog, tsis siv neeg khaws cov ntaub ntawv xeem, nrog rau kev luam ntawv thiab USB kev sib txuas lus.
