ZGS Series 200kv/3mA DC High Voltage Generator yog ib qho kev sib cais- hom siab-voltage testing device tsim los rau ntawm -qhov chaw thiab chaw kuaj sim ntawm nruab nrab thiab siab- cov khoom siv hluav taws xob hluav taws xob. Nws koom nrog kev ua haujlwm ruaj khov, kev tiv thaiv kev nyab xeeb, thiab kev txav mus los, ua rau nws tsim nyog rau lub tuam tsev hluav taws xob, kev lag luam thiab kev lag luam mining los ua DC tiv thaiv kev ntsuas hluav taws xob thiab kev ntsuas tam sim no.
Cov yam ntxwv ntawm cov khoom
(1) Muab 200kV DC ntsuas hluav taws xob nrog cov qauv- ntsuas tam sim no (2/3/5/10mA), txhawb zog ntsuas txog 2000W (rau JHZG20010).
(2) Tsawg ripple coefficient (tsawg dua los yog sib npaug li 0.5%) thiab siab voltage stability (tsawg dua los yog sib npaug li 1% thaum fais fab mov fluctuates ± 10%), kom ntseeg tau lub suab nrov - dawb, txhim khu kev qha DC tso zis.
(3) Strong capacitive load adaptability: Tsis muaj kev txwv ntawm kev sim khoom capacitance; txhawb 1.5x rated tam sim no rau kev them nyiaj sai (tsim rau cables, capacitors, thiab lwm yam).
(1) 0.75x Rated Voltage Latch: Ib qho -kov hloov dua siab tshiab & latching (qhov tseeb<1 level) for zinc oxide arrester leakage current testing, applicable to all models.
(2) Kev ua haujlwm dual hom: Kev hloov kho hluav taws xob (tseem{1}} lub sijhawm ntsuas qhov ntsuas / nyeem ntawv) + kev ntsuas tsis siv neeg (xws li zinc oxide ntes ntsuas ntsuas, cable tiv taus hluav taws xob), sib xws nrog txhua tus qauv.
(3) Precision Measurement: Voltage / tam sim no qhia qhov tseeb<1 level; measurement accuracy ±(1.0% reading + 2 digits) across all rated parameter ranges.
(1) Kev tiv thaiv overvoltage / overcurrent (adjustable setting values, digital display) txuam txhua tus qauv cov ntsuas ntsuas.
(2) Zero-voltage startup tiv thaiv thiab electromagnetic shielding (ntau-qib cais / grounding) kom tsis txhob muaj kev pheej hmoo ua haujlwm rau txhua tus qauv.

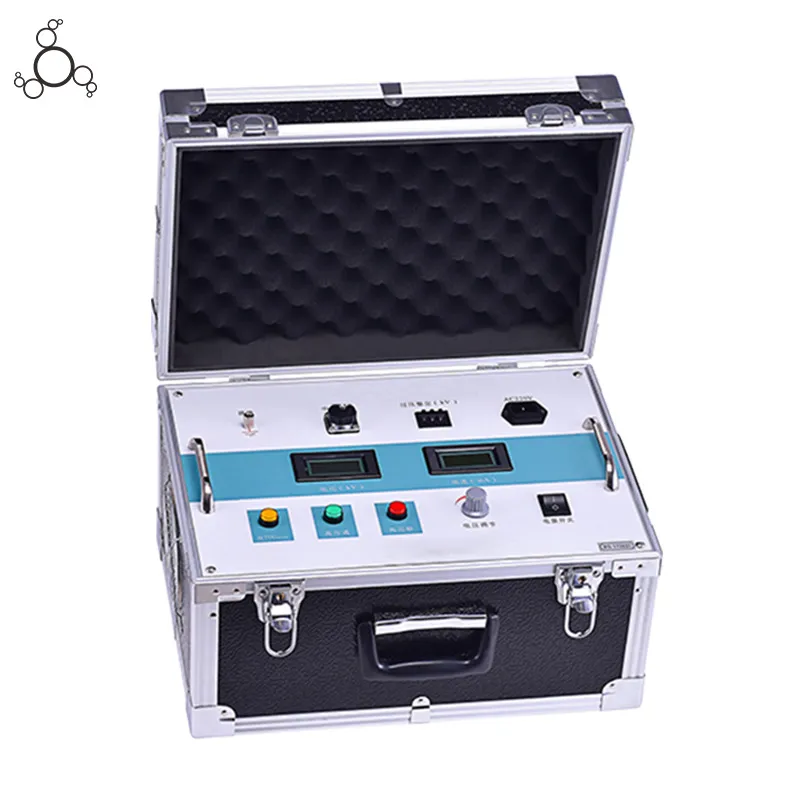

(1) Split tsim (tswj lub thawv + siab-voltage multiplier raj): tswj lub thawv (≈5.5kg); multiplier tube (qhov hnyav / qhov siab yoog raws tus qauv, piv txwv li, ~ 8.7kg / 970mm rau JHZG2002) - qhov no portable hipot tester yog ib qho yooj yim rau thauj thiab sib sau ua ke rau ntawm - qhov chaw xeem (chaw haujlwm fais fab, chaw lag luam thiab mining).
(1) Ambient kub: -10 ~ 40 degree; txheeb ze humidity: Tsawg dua los yog sib npaug rau 85% (25 degree, tsis muaj condensation); altitude: Tsawg dua los yog sib npaug li 1500m.
(2) Kev ua haujlwm tsis sib xws: 30 mins nyob rau hauv qhov ntsuas load; 10 mins ntawm 1.1x qhov ntsuas hluav taws xob (ib puag ncig txhua tus qauv)
Cov txheej txheem dc hipot xeem no tswj kev ua haujlwm ruaj khov nyob rau hauv txhua tus qauv kev ua haujlwm, ua tau raws li cov kev xav tau sib txawv ntawm kev sim ntawm -qhov chaw thiab chaw kuaj mob.
Khoom Parameter
|
Qauv |
JHZG2002/2003/2005 |
|||||
|
Specification |
200/2 |
200/3 |
200/5 |
300/2 |
300/3 |
300/5 |
|
Rated Voltage (kV) |
200 |
200 |
200 |
300 |
300 |
300 |
|
Rated tam sim no (mA) |
2 |
3 |
5 |
2 |
3 |
5 |
|
Rated zog (W) |
400 |
600 |
1000 |
600 |
900 |
1500 |
|
Control Box Qhov hnyav (kg) |
5.5 |
6 |
6.5 |
6.5 |
6.5 |
7.5 |
|
Multiplier Tube Nyhav (kg) |
8.7 |
9 |
9 |
11 |
11 |
11.5 |
|
Multiplier Tube Qhov siab (mm) |
1250 |
1250 |
1250 |
1250 |
1250 |
1250 |
|
Voltage raug |
± (1.0% nyeem + 2 tus lej) |
|||||
|
Qhov tseeb tam sim no |
± (1.0% nyeem + 2 tus lej) |
|||||
|
Ripple Factor |
Tsawg dua lossis sib npaug li 0.5% |
|||||
|
Voltage Stability |
Tsawg dua lossis sib npaug li 1% thaum lub zog hloov hluav taws xob hloov pauv ± 10% |
|||||
|
Tshaj peev xwm |
1.1x rated voltage (siv tau rau 10 mins) |
|||||
|
Max them tam sim no: 1.25x ntsuas tam sim no |
||||||
