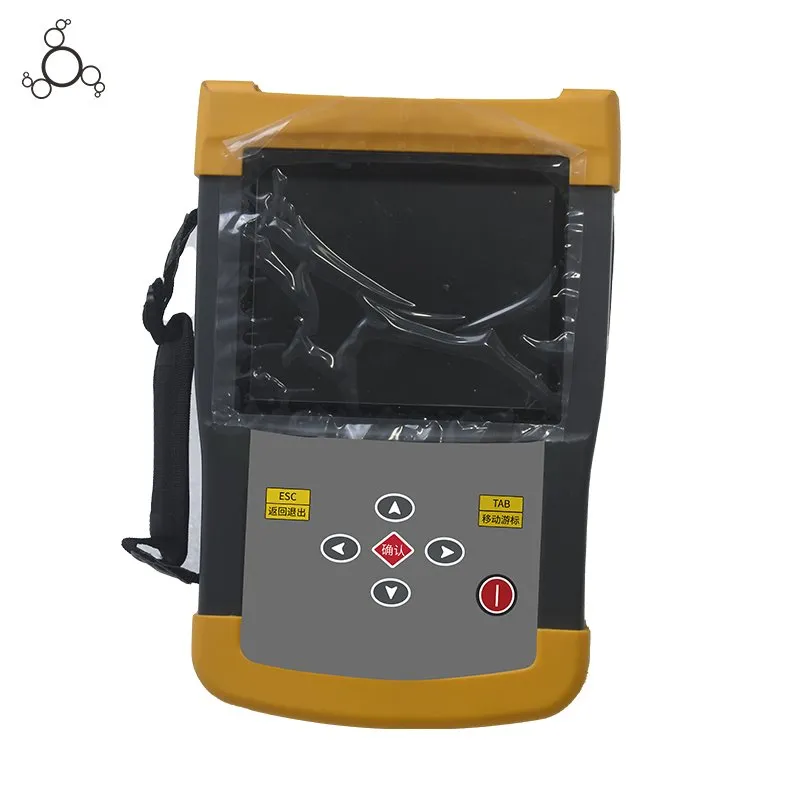

Handheld Transformer DC Winding Resistance Meter yog ib txoj haujlwm ntsuas rau kev tshuaj xyuas, kev teeb tsa, kev debugging, thiab kev tiv thaiv kev sim ntawm ib nrab -cov khoom tiav thiab tiav hauv transformer manufacturing. Txhawm rau ua kom tau raws li qhov xav tau ntawm kev ntsuas ceev ntawm transformer DC tsis kam, lub cim tshiab CT series DC resistance tester tau tsim. Tus neeg ntsuas kev tiv thaiv yog tswj los ntawm microcontroller thiab tau ua haujlwm xws li kev tshuaj xyuas tus kheej, ua cov ntaub ntawv, tso saib, khaws cia, thiab luam ntawv. Ua ke nrog cov cuab yeej ntsuas hluav taws xob zoo, cov cuab yeej muaj qhov raug siab, ntsuas qhov dav, thiab ua haujlwm yooj yim. Nws tuaj yeem ua tiav kev ntsuas ceev ntawm transformer rhiab heev, voltage, thiab transformer kuj.
KhoomTaw qhia
Tes- tuav Transformer DC Winding Resistance Tester tsis yog tsuas yog tsim nyog rau kev ntsuas ntawm inductive test khoom xws li transformer, CT / PT thiab reactor, tab sis kuj rau kev ntsuas cov khoom ntsuas tiv thaiv xws li tooj liab bar, xaim thiab hloov kev sib cuag.
Raws li cov khoom tsim tawm tshiab, nws muaj cov yam ntxwv ntawm qhov me me, kev ntsuas ceev ceev thiab qhov tseeb siab.
Khoom Parameter
|
Qauv |
JH2011 |
|
Ua haujlwm fais fab |
ua -hauv 12.6V/7.8AH lithium roj teeb |
|
Cov zis tam sim no |
5mA, 100mA, 300mA, 1A, 10A, tsis siv neeg |
|
Kev ntsuas ntau |
0-20kΩ |
|
Qhov tseeb |
±(0.2%RD+0.05%FS) |
|
Yam tsawg kawg nkaus daws teeb meem |
1uΩ |
|
Zaub |
loj npo xim LCD |
|
Muaj nuj nqi |
Handheld Transformer DC Resistance Tester |
Khoom feature thiab daim ntawv thov
1.Handheld, me me, lub teeb yuag, yooj yim nqa
2.Cov cuab yeej muab 6-gear tso zis tam sim no xaiv, nrog rau qhov siab tshaj plaws ntawm 10A
3. Cov xim loj LCD zaub, cov ntaub ntawv khaws cia, phau ntawv hloov pauv kub thiab lwm yam haujlwm
4.Nws muaj feem xyuam rau inductive xeem khoom xws li transformer, sib nrig sib inductor, reactor, generator, lub cev muaj zog tooj liab bar, tiv tauj, thiab lwm yam. Nws kuj siv tau los ntsuas cov khoom kuaj xws li keyboards, tooj liab tuav, contactors, relay hu, hlau xov hlau, cable accessories, thiab lwm yam.
5.Powered los ntawm poov tshuaj roj teeb, nws tuaj yeem hloov mus rau txhua yam kev sim nyuaj
6.Nws muaj kev tiv thaiv zoo EMF rov qab thiab muaj zog tiv thaiv -arc peev xwm

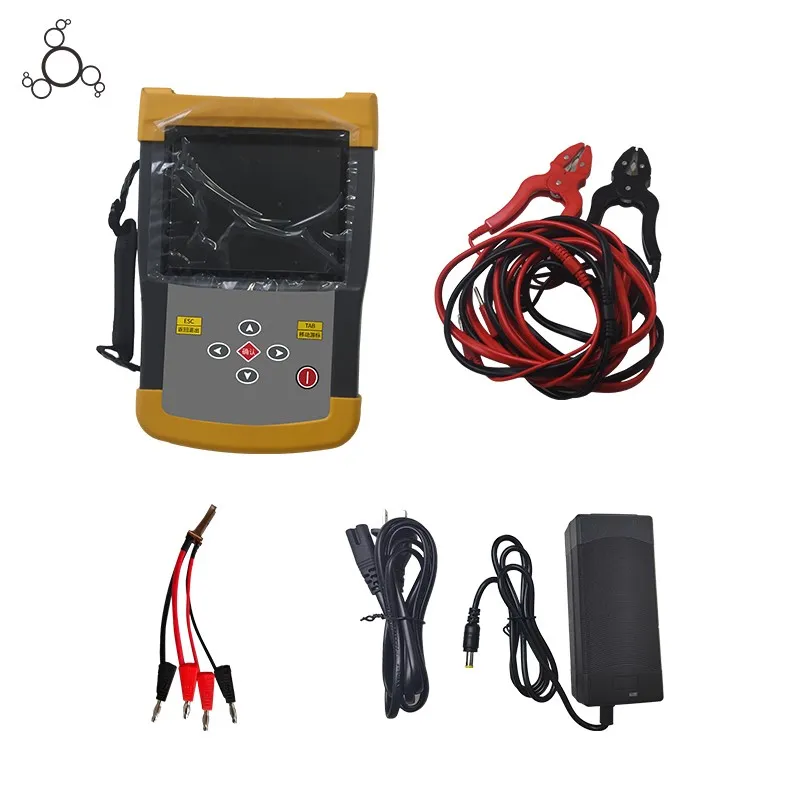

Khoom Accessories
Standard Accessories List
1.Liab thiab dub hnyav- lub luag haujlwm kuaj ua nrog cov kab nuv ntses
2.Liab thiab dub xeem coj nrog 4 probes
3.AC fais fab qaum
4.DC them cable
5. Fais fab adapter ( roj teeb charger)
Kev Tsim Nyog Kev Tsim Nyog
Xa, Shipping thiab Pab
FAQ
Q: Dab tsi yog qhov kev lees paub ntawm winding tsis kam?
A: Dab tsi yog qhov kev lees paub ntawm winding resistance?
Tus nqi lees txais ntawm transformer winding tsis kam yog teev nyob rau ntawm lub npe transformer lossis hauv nws phau ntawv qhia kev. Feem ntau, qhov ntsuas tus nqi yuav tsum tsis pub dhau ± 1% ntawm tus nqi ntsuas, thiab qhov tsis sib npaug ntawm peb theem yuav tsum tsis pub tshaj 2%. Peb tus neeg ntsuas qhov tseeb siab ua kom ntseeg tau qhov kev txiav txim siab ntawm cov txiaj ntsig no.
Q: Yuav ua li cas txheeb xyuas lub faulty transformer siv JH2011?
A: Koj tuaj yeem txheeb xyuas qhov hloov pauv tsis raug los ntawm kev tshuaj xyuas cov ntaub ntawv tiv thaiv winding ntsuas los ntawm JH2011
Txheeb xyuas cov kab hluav taws xob qhib: Yog tias qhov kev nyeem ntawv tsis muaj qhov kawg (OL), nws qhia tau hais tias qhib Circuit Court hauv winding.
Txheeb xyuas qhov luv luv: Yog tias qhov kev tiv thaiv qis dua li tus nqi teev ntawm lub npe transformer, nws yuav qhia tau tias muaj luv luv Circuit Court (piv txwv li, tig- rau -tig luv).
Txheeb xyuas theem tsis sib npaug: Yog tias qhov ntsuas qhov tsis sib npaug ntawm peb theem siab tshaj 2%, nws qhia tau tias muaj qhov yuam kev hauv ib qho ntawm cov windings.
Sib piv nrog cov ntaub ntawv keeb kwm Siv cov ntaub ntawv khaws cia ua haujlwm ntawm JH2011 los sib piv cov kev nyeem tam sim no nrog cov txiaj ntsig kev xeem dhau los. Ib qho kev hloov pauv tseem ceeb hauv tus nqi tiv thaiv yog qhov taw qhia muaj zog ntawm kev txhim kho txhaum.
Q: Yuav ntsuas qhov ntsuas DC li cas?
A: Peb transformer winding kuj tester siv DC voltage nco txoj kev. Nws siv qhov ruaj khov DC tam sim no (txog 10A) mus rau qhov winding, ntsuas qhov hluav taws xob poob, thiab suav cov kev tiv thaiv siv Ohm txoj cai (R=V / I). Txoj kev no muab kev ntsuas ceev, raug, thiab ruaj khov rau inductive loads zoo li transformers.
