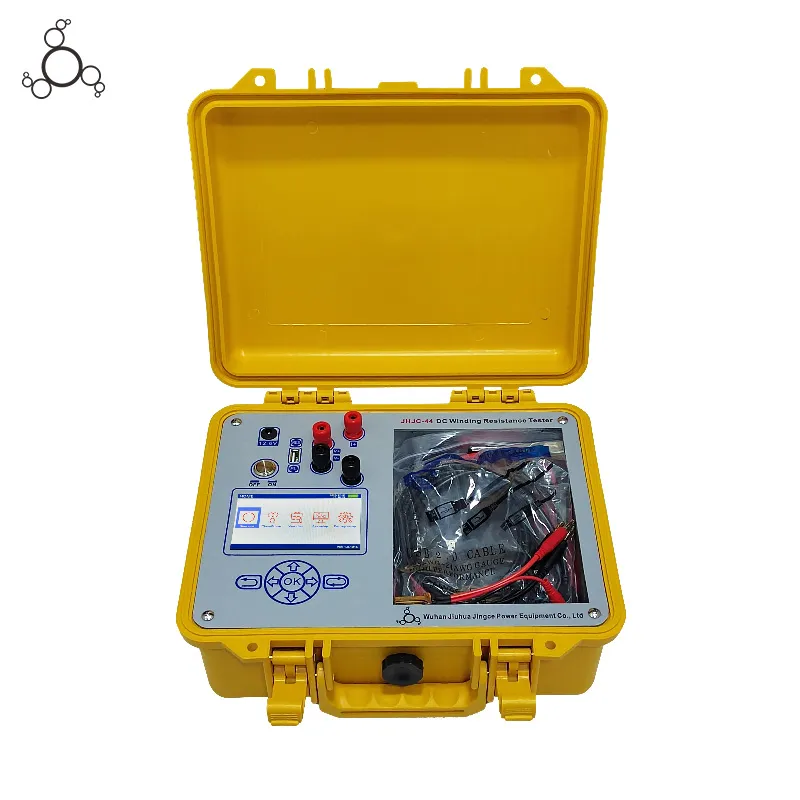

Yuav kom ua tau raws li qhov xav tau ntawm transformer DC tsis kam ntsuas, lub tuam txhab tau tsim tsis ntev los no transformer resistance tester txais cov cuab yeej tshiab, uas muaj cov yam ntxwv ntawm kev ua haujlwm siab, me me, lub teeb yuag thiab cov zis loj tam sim no. Lub tshuab tag nrho yog tswj los ntawm microprocessor, uas tuaj yeem ua tiav cov haujlwm ntawm tus kheej - kuaj, cov ntaub ntawv ua, zaub, thiab lwm yam, thiab tseem muaj cov haujlwm ntawm kev tso tawm tsis siv neeg.Qhov ntsuas no muaj qhov ntsuas qhov tseeb thiab kev ua haujlwm yooj yim, thiab tsim nyog rau kev faib khoom transformers, transformers, reactors, generators, motors thiab lwm yam khoom siv kuaj, thiab kuj tseem siv tau rau kev ntsuas kev sib hloov ceev, xws li cov khoom siv hluav taws xob hloov hluav taws xob. tuav, contactors, relay hu, hlau hlau, cable accessories, thiab lwm yam, nrog rau cov yam ntxwv ntawm ceev ceev thiab ruaj khov cov ntaub ntawv.
KhoomTaw qhia
1.Qhov tso zis tam sim no ntawm qhov ntsuas yog qhov loj, thiab nws yog lub teeb yuag, lub teeb yuag thiab muaj zog, thiab nqa tau yooj yim.
2.Cov cuab yeej muab 5 tso zis tam sim no, thiab tuaj yeem tso tawm mus txog 10A.
3.Ua-hauv ultra- lub peev xwm loj lithium roj teeb, yooj yim rau kev khiav lag luam ntawm qhov chaw.
4.Qhov kev ntsuas qhov dav yog qhov dav (0-20KΩ), uas yog tsim rau kev faib tawm transformers, transformers, reactors, generators, motors thiab lwm yam qauv, thiab kuj yuav siv tau los ntsuas 3 theem transformer kuj thiab cov khoom kuaj xws li keyboards, tooj liab tuav, contactors, relay hu, hlau xov hlau, cable accessories thiab lwm yam specimens.
5.Cov ntawv qhia zaub mov yooj yim thiab tus phooj ywg, thiab cov ntaub ntawv tso tawm kom pom tseeb thiab nyeem tau yooj yim, yog li nws tuaj yeem ua kom pom tseeb hauv lub hnub ci.
6.Nws muaj kev tiv thaiv zoo tshaj plaws, cov kab xeem raug txiav tsis raug lossis cov khoom siv hluav taws xob raug cuam tshuam, thiab cov tsim ua - nyob rau hauv qhov hluav taws xob zoo tshaj plaws thiab rov qab EMF tiv thaiv Circuit Court ua rau nws muaj zog tensile arc tsis kam, uas tuaj yeem ua kom muaj kev ruaj ntseg ntawm winding resistance unbalance test data.
Kev ruaj ntseg
1.Qhov ntsuas no tuaj yeem siv sab hauv tsev thiab sab nraum zoov, tab sis nws yuav tsum tsis txhob muaj nag, roj corrosive, plua plav, kub kub thiab lwm qhov chaw.
2.Nco ntsoov nyeem phau ntawv no ua tib zoo ua ntej siv lub ntsuas no.
3.Tus neeg teb xov tooj ntawm qhov ntsuas yuav tsum muaj kev nkag siab zoo ntawm kev siv cov khoom siv hluav taws xob lossis cov cuab yeej siv.
4.Qhov ntsuas no yog qhov ntsuas siab -qhov tseeb thiab yuav tsum tsis txhob muaj kev vibration hnyav.
5.Kev kho, tu thiab debugging ntawm cov cuab yeej no yuav tsum tau ua los ntawm cov kws tshaj lij.
6.Tom qab qhov kev sim ua tiav, nco ntsoov tos kom lub suab nrov tso tawm kom nres, tom qab ntawd tua lub hwj chim thiab tshem tawm cov hlau lead.
7.To ntsuas qhov tsis muaj -load voltage regulating transformer, nco ntsoov tos kom lub suab nrov tawm kom kawg, thiab tom qab ntawd hloov lub iav transformer.
8.Thaum qhov kev xeem, nws yog txwv tsis pub disassemble thiab txav mus rau qhov kev xeem clips thiab fais fab mov kab, tshwj xeeb tshaj yog rau 3 theem transformer winding kuj tsis sib npaug xeem kom tsis txhob muaj cov ntaub ntawv sib txawv.
Khoom Parameter
|
Qauv |
JH2810 |
|
|
Fais fab mov |
DC: Ua hauv 12.6V / 5.2AH lithium roj teeb (dawb fais fab adapter) |
|
|
Tso zis tam sim no |
5mA, 100mA, 300mA, 1A, 10A (Xaiv los ntawm ntau yam) |
|
|
Range (hloov ntawm qhov kev tawm tsam) |
||
|
10A zog |
0-0.1Ω |
|
|
1A zog |
0.03-6Ω |
|
|
300mA zog |
0.1Ω-20Ω |
|
|
100mA zog |
0.3Ω-60Ω |
|
|
5mA zog |
30Ω-20kΩ |
|
|
Qhov tseeb |
Tsawg dua 1.000kΩ |
±(0.2%RD+0.05%FS) |
|
1.000kΩ lossis ntau dua |
±(0.2%RD+0.01%FS) |
|
|
Yam tsawg kawg nkaus daws teeb meem |
1μΩ |
|
|
Zaub |
TFT LCD zaub |
|
|
Ua haujlwm kub |
-10-40 ° C |
|
|
Ambient humidity |
Tsawg dua los yog sib npaug rau 80% RH, tsis muaj condensation |
|
|
Cia tej yam kev mob |
-20℃~ 50 degree, Tsawg dua los yog sib npaug rau 95％RH, tsis muaj condensation |
|
|
Ntim |
320mm × 270mm × 140mm |
|

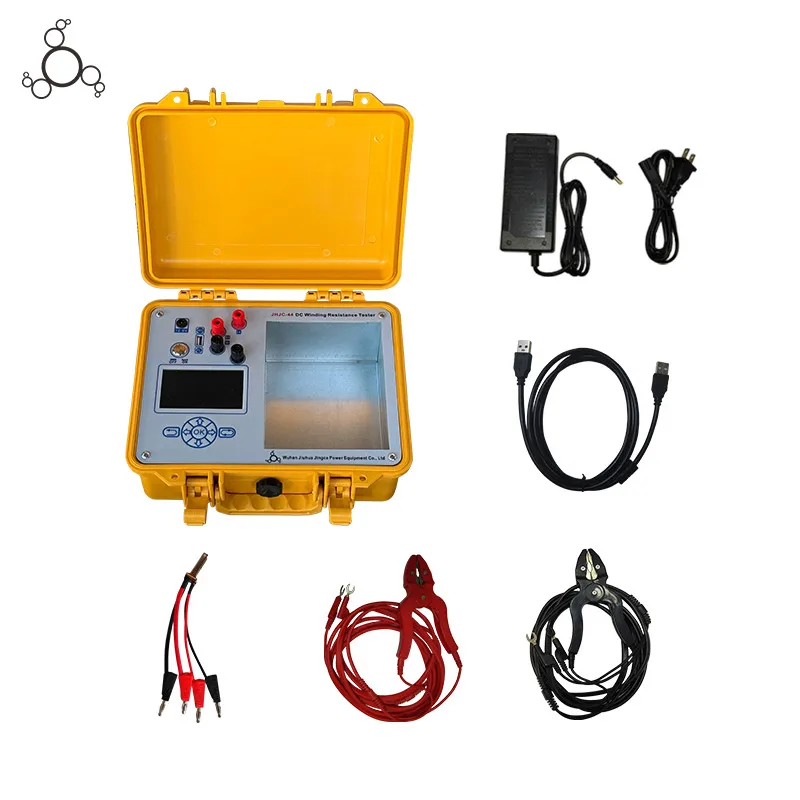

Khoom Accessories
- Cov khoom no los nrog
- Portable host
- Ib txheej ntawm kev mob siab rau kev xeem
- Ib tug USB cableone charger
- Tus qauv resistor
- Ib qho kev qhia manua
- Ib daim ntawv pov thawj ntawm kev ua raws cai thiab daim ntawv pov thawj
Kev Tsim Nyog Kev Tsim Nyog
Xa, Shipping thiab Pab
FAQ
Q: Cov cuab yeej no puas tuaj yeem kuaj peb -theem tsis sib npaug ntawm cov hloov pauv, thiab qhov kev xeem tau txais li cas?
A: Yog lawm, cov cuab yeej tau nruab nrog rau peb lub siab ua haujlwm -theem xeem ua haujlwm thiab tuaj yeem suav qhov peb -theem tsis sib npaug. Tom qab ua tiav qhov peb-theem winding resistance test nyob rau hauv peb lub-theem test hom, lub ntsuas yuav ncaj qha tso saib qhov ntsuas peb-theem unbalance tus nqi ntawm transformer ntawm lub interface raws li cov ntaub ntawv tiv thaiv ntsuas.
Q: Dab tsi yuav tsum tau teeb tsa ua ntej thaum siv qhov ntsuas los ntsuas peb -theem unbalance tus nqi ntawm lub transformer?
A: Koj yuav tsum tau teeb tsa pawg kev sib txuas, coj mus rhaub hloov, sim xaiv (siab-voltage side/low-voltage side), kub them hom, ntsuas tam sim no thiab ambient kub hauv peb-theem sim teeb interface ua ntej; Yog hais tias lub transformer yog hom kev sib txuas yn, qhov ntsuas yuav ua rau qhov ntsuas nruab nrab (A-0, B-0, C-0), thiab qhov ntsuas tsis nruab nrab tuaj yeem xaiv tau raws li qhov xav tau.
Q: Dab tsi yog cov qauv kev suav ntawm peb -theem unbalance tus nqi siv los ntawm qhov ntsuas, thiab nws puas suav los yog ua tiav?
A: Cov cuab yeej siv cov qauv kev lag luam FormulThree-theem unbalance rate=(R max - R min) / R nruab nrab rau kev suav, thiab tag nrho cov txheej txheem tau ua tiav los ntawm qhov ntsuas yam tsis muaj phau ntawv suav tom qab peb-theem xeem tiav.
