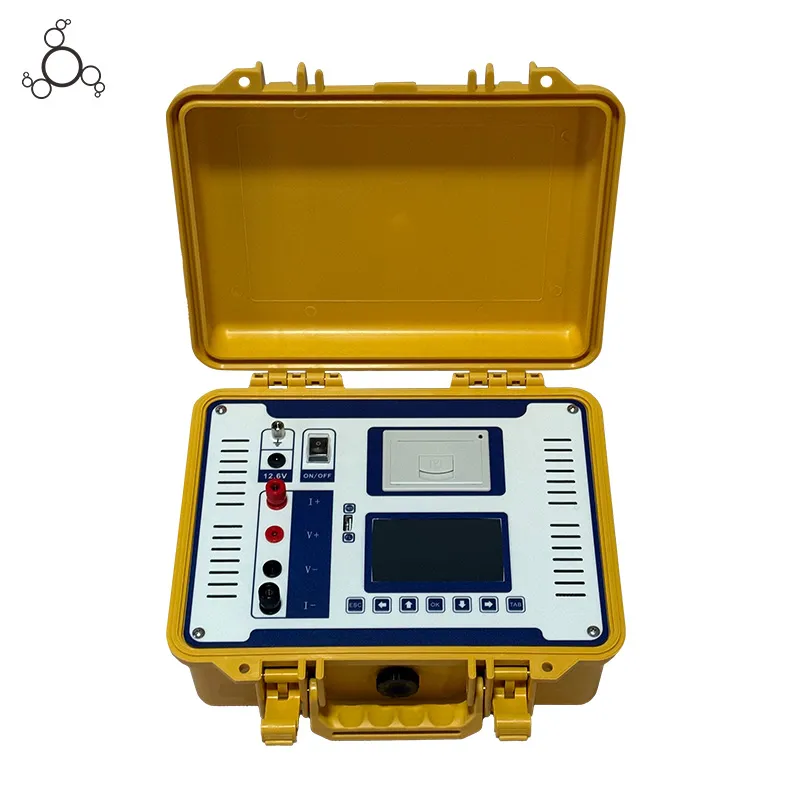

Qhov no transformer DC winding resistance tester yog tsim tshwj xeeb rau dc winding resistance test, daws qhov mob ntawm lub sij hawm -siv thiab kev ua hauj lwm - mob hnyav ib txwm sim. Nruab nrog cov cuab yeej siv hluav taws xob tshiab, nws muaj kev ua haujlwm ruaj khov, ntsuas nrawm thiab raug, thiab yog qhov kev xaiv zoo tshaj plaws rau kev sim ntau yam inductive thiab resistive qauv. Lub ntsuas hluav taws xob tau nruab nrog ntau- iav tam sim no hloov kho thiab tsis siv neeg iav rau kev ua haujlwm yooj yim, nrog rau kev ua haujlwm zoo xws li cov ntaub ntawv khaws cia, hloov pauv kub tsis siv neeg thiab luam ntawv sai, tsis muaj cov ntaub ntawv poob tom qab kaw, ntsuas ntsuas kev ua haujlwm thiab cov ntaub ntawv traceability. Cov ua tau - nyob rau hauv lithium roj teeb tawg tawm ntawm kev txwv ntawm kev lag luam fais fab, haum rau ntau yam ntawm - qhov chaw sim scenarios. Tsis tas li ntawd, cov khoom lag luam muaj peb hom ntsej muag lub ntsej muag ntsuab, xiav thiab daj, nrog ntau hom xim rau kev xaiv tus kheej ntawm kev thov.
KhoomTaw qhia
Cov khoom no yog tus muag khoom zoo tshaj plaws hauv peb lub tuam txhab transformer winding resistance tester series. Nws nta cov nqi ua tau zoo thiab ua tiav cov haujlwm, xa cov kev ua haujlwm ruaj khov, ntsuas qhov tseeb thiab ntsuas nrawm nrawm. Nruab nrog tsis siv neeg thiab ntau lub zog tam sim no tso tawm, cov ntaub ntawv khaws cia, tsis siv neeg hloov pauv kub thiab luam ntawv ua haujlwm, nws yog dav siv rau kev sim transformers, kev sib nrig sib inductors, reactors thiab lwm yam khoom siv inductive, nrog rau ntau yam khoom tiv thaiv, thiab yog cov cuab yeej tshaj lij rau dc tsis kam kuaj cov khoom siv hluav taws xob.
Khoom Parameter
|
Qauv |
JH2510 |
|
Ua haujlwm fais fab |
220V (AC) |
|
Cov zis tam sim no |
5mA, 100mA, 300mA, 1A, 10A, tsis siv neeg |
|
Kev ntsuas ntau |
0-20kΩ |
|
Qhov tseeb |
±(0.2% RD+0.05% FS) |
|
Yam tsawg kawg nkaus daws teeb meem |
1uΩ |
|
Zaub |
loj npo xim LCD |
|
Tswj vaj huam sib luag xim |
Ntsuab / Xiav / Daj |
Khoom feature thiab daim ntawv thov
1.Qhov ntsuas muab 6-gear tso zis tam sim no xaiv thiab ib qho khoom siv tsis siv neeg. Qhov siab tshaj tawm tam sim no yog 10A, uas tuaj yeem ua tau raws li qhov yuav tsum tau ua ntawm cov qauv impedance sib txawv rau transformer dc kuj ntsuas.
2.Nws muaj feem xyuam rau inductive xeem khoom xws li transformer, sib nrig sib inductor, reactor, generator, lub cev muaj zog, thiab lwm yam, thiab kuj yuav siv tau los ntsuas cov khoom xeem xws li keyboards, tooj liab tuav, contactors, relay hu, hlau xov hlau, cable accessories, thiab lwm yam.
3.Nrog rau daim ntawv qhia hnub perpetual, 99 pawg ntawm cov ntaub ntawv khaws cia, tsis siv neeg hloov pauv kub thiab lwm yam haujlwm, tsis muaj cov ntaub ntawv poob tom qab kaw
4.A lub tshuab luam ntawv tuaj yeem tso tawm thiab luam tawm cov ntaub ntawv xeem, uas yooj yim rau ntawm -cov ntaub ntawv chaw khaws ntaub ntawv ntawm dc winding resistance test of transformer
5.Multiple xim tswj vaj huam sib luag muaj: ntsuab / xiav / daj.
Kev Tsim Nyog Kev Tsim Nyog
Xa, Shipping thiab Pab
Kev Tiv Thaiv Kev Nyab Xeeb
Pre-Test Preparation
Fais fab tshem tawm cov cuab yeej kuaj kom tiav thiab tso tawm tag nrho; so tawm oxide ntawm cov terminals thiab fasten qhov kev xeem ua kom khov kho.
Kev ua haujlwm iav
Xaiv lub iav tam sim no raws li hom / impedance ntawm cov khoom xeem, tsis dhau - ntau yam kev xeem; kev xaiv iav yog pom zoo rau siab - ntsuas qhov tseeb.
Tom qab kuaj cov khoom Inductive
Tsis txhob cuam tshuam cov kev xeem coj tam sim tom qab kuaj; ua haujlwm tsuas yog tom qab lub ntsuas ntsuas qhov ua tiav ntawm qhov seem hluav taws xob tso tawm.
Kev Siv Hluav Taws Xob & Ib puag ncig
Txuas mus rau 220V raws li lub zog tseem ceeb, zam lub zog tsis ruaj khov; tsis txhob siv lub sijhawm ntev hauv qhov chaw hnyav nrog cov plua plav ntau dhau, cov av noo siab lossis muaj zog electromagnetic cuam tshuam.
Printing & Data Management
Thauj cov ntawv luam ntawv kom zoo ua ntej luam ntawv kom tsis txhob muaj ntawv kaw; luam tawm thiab ua cov ntaub ntawv xeem keeb kwm hauv lub sijhawm kom tsis txhob poob cov ntaub ntawv.
Kho & Cia
Ua kom huv ntawm qhov kev xeem ua tom qab siv; khaws cov twj paj nruag rau hauv qhov chaw qhuav, qhov cua thiab tsis yog-ib puag ncig corrosive, xyuas cov terminals tsis tu ncua, thiab tshem tawm tag nrho cov kab sab nraud thaum lub ntsuas hluav taws xob tsis ua haujlwm.
