1.Qhov ntsuas muab 6-gear tso zis tam sim no xaiv thiab ib qho khoom siv tsis siv neeg. Qhov siab tshaj plaws tso zis tam sim no yog 10A, uas yog tshwj xeeb tsim los rau qhov tseeb dc winding tsis kam ntsuas ntawm ntau yam khoom siv inductive windings.
2.Nws muaj feem xyuam rau inductive xeem khoom xws li transformer, sib nrig sib inductor, reactor, generator, lub cev muaj zog, thiab lwm yam., thiab kuj yuav siv tau rau 3 theem winding kuj ntsuas ntawm transformers, raws li zoo raws li cov khoom xeem xws li keyboards, tooj liab tuav, contactors, relay hu, hlau nyob ntawm tej, cable accessories, thiab lwm yam.
3.Nrog daim ntawv qhia hnub tas mus li, 99 pawg ntawm cov ntaub ntawv khaws cia, tsis siv neeg hloov pauv kub thiab lwm yam haujlwm, tsis muaj cov ntaub ntawv poob tom qab kaw
4.A lub tshuab luam ntawv tuaj yeem tso tawm thiab luam tawm cov ntaub ntawv xeem
KhoomTaw qhia
Transformer dc winding resistance tester (10A type) yog cov cuab yeej tshaj lij rau transformer dc winding test, thiab cov ntaub ntawv xeem yog ib qho khoom siv rau kev sim ib nrab -cov khoom tiav thiab tiav hauv transformer manufacturing, suav nrog kev kuaj xyuas, kev teeb tsa, kho dua tshiab, hloov cov kais hloov pauv, ntsuas kev xa mus, thiab kev ntsuas kev tiv thaiv los ntawm lub tuam tsev fais fab. Nws tuaj yeem tshawb xyuas qhov vuam zoo ntawm cov pob qij txha winding thiab seb puas muaj kev cuam tshuam luv luv hauv lub winding. Nws tseem tuaj yeem tshawb xyuas seb qhov kev sib cuag ntawm ntau txoj haujlwm ntawm lub tshuab hloov hluav taws xob puas yog qhov zoo, seb qhov chaw ntawm tus kais hloov pauv puas haum rau txoj haujlwm qhia, seb cov xaim tawm puas lawm, thiab seb puas muaj cov hlua tawg thaum ntau cov xov hlau raug mob ua ke.
Khoom Parameter
|
Qauv |
JH2810 |
|
Ua haujlwm fais fab |
220V (AC) |
|
Cov zis tam sim no |
1mA, 10mA, 100mA, 1A, 5A, 10A, tsis siv neeg |
|
Kev ntsuas ntau |
0-20k Ω |
|
Yam tsawg kawg nkaus daws teeb meem |
1u Ω |
|
Qhov hnyav |
8kg ua |
|
Qhov tseeb |
±(0.2% RD+0.05% FS) |
Kev ntsuas kev nyab xeeb
1. Nco ntsoov nyeem phau ntawv no ua tib zoo nyeem ua ntej siv cov cuab yeej no.
2. Cov cuab yeej no tuaj yeem siv rau sab hauv tsev thiab sab nraum zoov, tab sis nws yuav tsum tau zam hauv qhov chaw xws li los nag thiab roj corrosive.
3. Cov cuab yeej yuav tsum tsis txhob muaj kev vibration hnyav.
4. Kev tu, tu, thiab kho cov cuab yeej yuav tsum tau ua los ntawm cov neeg ua haujlwm tshaj lij.
5. Tom qab qhov kev xeem tiav lawm, nws yog ib qho tsim nyog yuav tsum tau rov pib dua lub cuab yeej thiab tua lub hwj chim ua ntej tshem tawm cov hlau ntsuas.
6.Thaum cov txheej txheem xeem, nws yog txwv tsis pub txav lub xeem clamp thiab tua lub hwj huam mov kab.

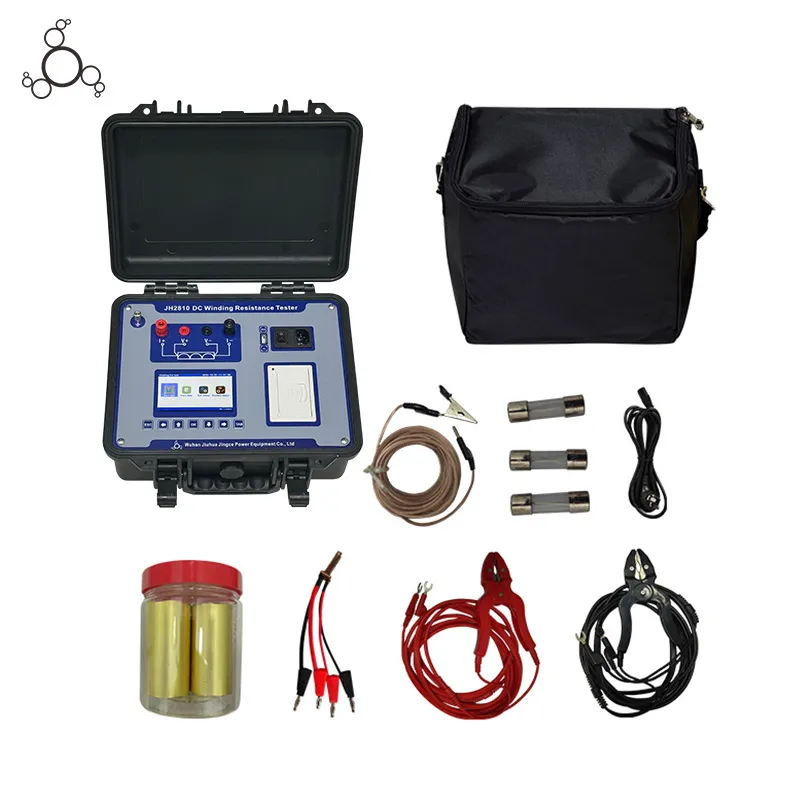

Khoom Accessories
- Portable hard case
- Ib lub hnab nqa khoom dub
- Ib txheej ntawm kev sim siab ua rau (liab, dub, thiab ntau-xim)
- Peb lub fuses seem
- Ib tug USB cable
- Ob daim ntawv luam ntawv
- Ib txheej ntawm liab thiab dub adapter cables nrog cov kab nuv ntses
- Ib txheej ntawm kev sim dub coj nrog cov kab nuv ntses loj
Kev Tsim Nyog Kev Tsim Nyog
Xa, Shipping thiab Pab
FAQ
Q: Vim li cas nws thiaj li tsim nyog los tswj qhov kev sib cuag ntawm qhov ntsuas clamp thiab cov qauv ua ntej kev sim, thiab yuav ua li cas khiav nws?
A: Ntev-lub sij hawm raug kev sib cuag ntawm qhov ntsuas clamp thiab cov qauv yuav ua rau cov yeeb yaj kiab oxide, ua rau qhov ntsuas tsis ruaj khov thiab tsis raug. Koj tuaj yeem ntxuav cov oxide txheej ntawm qhov kawg ntawm kev sib cuag ncaj qha, lossis ntswj qhov ntsuas clamp kom ruaj khov tom qab clamping cov qauv kom tawg cov oxide zaj duab xis lub cev thiab xyuas kom zoo.
Q: Cov cuab yeej txhawb nqa ob qho tib si AC thiab DC lub zog nrog lub teeb ua - hauv lithium roj teeb. Yuav ua li cas tswj lub roj teeb thaum tsis siv lub sijhawm ntev?
A: Thaum lub twj tso kua mis tsis ua haujlwm ntev, nws raug nquahu kom them lub roj teeb lithium ib hlis ib zaug kom tsis txhob muaj kev puas tsuaj vim dhau - paug. Siv lub zog txhawb nqa adapter rau them, thiab nres them tom qab lub roj teeb tau them tag nrho kom ntseeg tau tias lub zog ib txwm muaj thaum rov siv dua.
Q: Dab tsi yog cov kauj ruam tsim nyog ua ntej tshem cov kev xeem coj tom qab kev xeem, thiab vim li cas?
A: Tom qab qhov kev sim, nias qhov "Stop" tus yuam sij kom rov pib dua lub cuab yeej, paub meej tias tsis muaj qhov tso tawm tam sim no thiab ua kom tiav, tom qab ntawd tua lub hwj chim thiab tshem tawm cov kev xeem. Yog tias qhov kev xeem coj raug tshem tawm ncaj qha yam tsis muaj kev tso tawm, lub zog hluav taws xob rov qab los ntawm cov qauv inductive tuaj yeem ua rau cov khoom siv hluav taws xob puas tsuaj thiab ua rau muaj kev phom sij.
