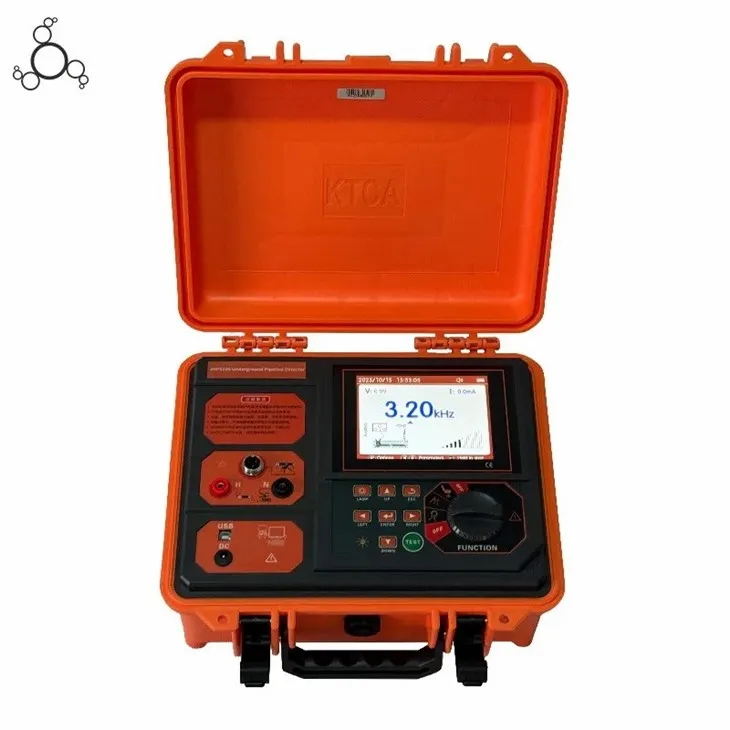

Intelligent Underground Yeeb Nkab Cable Locator

JHPS190 yog lub chaw tsim khoom hauv av hauv av / cable locator, txhawm rau taug qab txoj hauv kev, ntsuas qhov tob thiab kuaj xyuas qhov tsis raug.
Nws muaj 12 nquag (577Hz–201kHz) thiab 4 passive (50Hz, 250Hz, 3.20kHz, 4.09kHz) nrhiav kom tau zaus.
Txhawb 3 hom kev nrhiav (Broad Peak, Peak Response, Null) thiab 3 lub vijtsam zaub hom.
Transmitter muaj 3 lub teeb liab tawm (Direct, Coupling, Induction) nrog 10W max zog & nws pib impedance txuam.
Txais qhov tob qhov tseeb: ± 5% (tsawg dua lossis sib npaug li 3m) thiab ± 10% (3-20m) rau kev tshawb pom hauv av.
Nruab nrog LED hmo ntuj teeb pom kev zoo thiab Bluetooth rau mobile ntaus ntawv ua cov ntaub ntawv.
Ua haujlwm ruaj khov hauv -10℃-40 degree, zoo tagnrho rau kev saib xyuas hauv av.

1. Hom Kev Ntsuas: Hom Classic; Plan Saib hom; Teeb liab Curve hom
Hom Classic
Compass, kev taw qhia thiab teeb liab amplitude zaub, intuitively qhia sab laug thiab txoj cai ntawm lub raj xa dej.
Plan Saib hom
360℃tag nrho - puag ncig lub raj xa dej qhia, tsis tu ncua qhia qhov tob, tam sim no thiab qhov chaw txheeb ze ntawm cov kav dej. Lub interface yog yooj yim thiab intuitive.
Teeb liab Curve hom
Nws tuaj yeem tso saib keeb kwm teeb liab lub zog nkhaus thiab pom qhov chaw ntawm cov cables los ntawm kev soj ntsuam cov kev hloov pauv ntawm cov teeb liab lub zog nkhaus ntawm qhov chaw sib txawv.
2. Kev taw qhia tam sim no rau qee zaus
nws tuaj yeem tshem tawm kev cuam tshuam ntawm kab uas nyob ib sab thiab tiv thaiv kev taug qab qhov yuam kev los ntawm calibrating cov kev taw qhia tam sim no.
3.Sweep Test
Cov neeg siv tuaj yeem xaiv qhov tsim nyog lub teeb liab zaus rau kev ntsuas cov raj xa dej los ntawm cov txiaj ntsig cheb zaus kom tsis txhob muaj co- zaus cuam tshuam.
4.12 nquag nrhiav tau ntau zaus thiab 4 passive nrhiav kom tau zaus.
5. Ntau lub teeb liab tso zis txoj kev rau lub transmitter: ncaj qha tso zis, teeb liab coupling, induction txoj kev.
6. Amplified hwj chim tso zis rau lub transmitter, tag nrho tsis siv neeg impedance txuam, thiab tag nrho tsis siv neeg tiv thaiv.
7. Ua tau - nyob rau hauv lub teeb nyob rau hauv lub twj tso kua mis kom yooj yim rau kev khiav hauj lwm hmo ntuj.

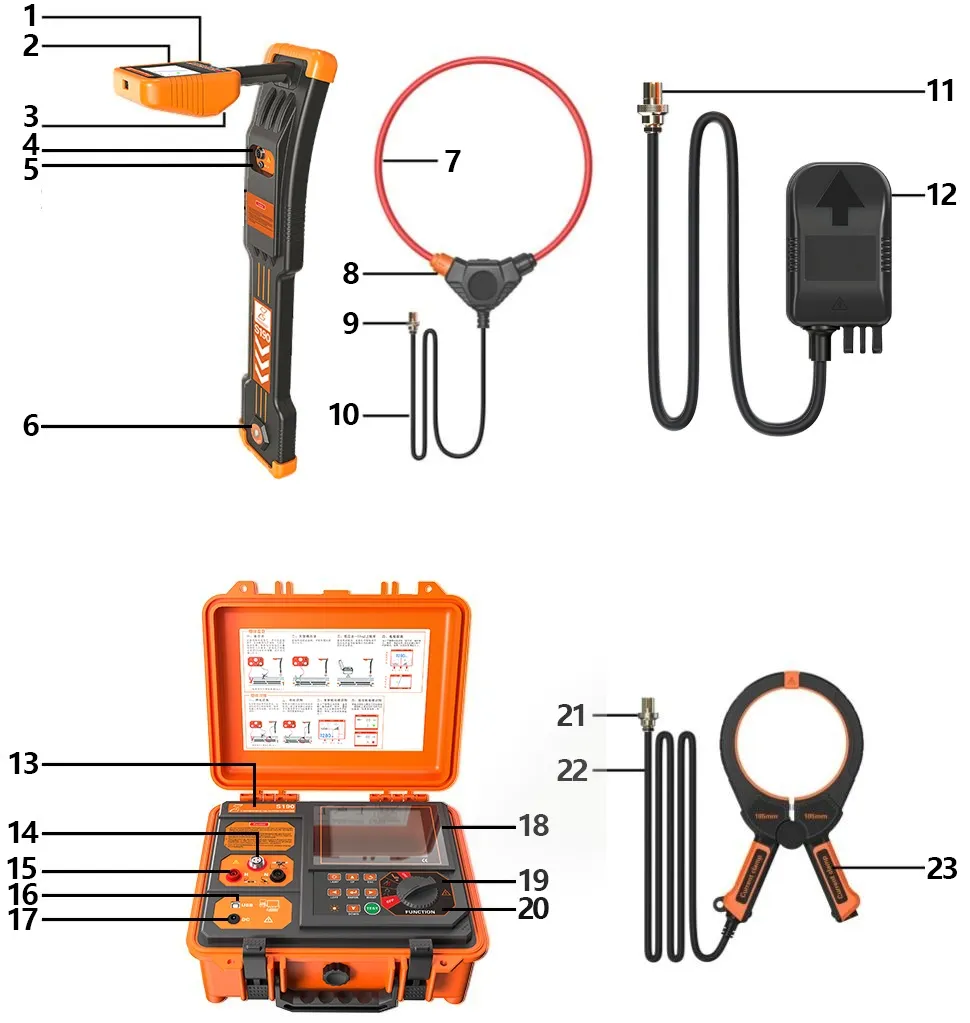

1.Operation khawm

2.LCD npo

3.Gauin kho pob qhov rooj

4.Flexible coil txuas qhov (socket):

5.Chaw nres nkoj

6. Lub teeb

7. Yooj yim tam sim no clamp

8.Snap- ntawm Buckle

9.Output Socket ntawm Rogowski kauj

10. Cov kab hluav taws xob

11.Output chaw nres nkoj ntawm Stethoscope

12.Stethoscope

13.Sticker

14.Cov qhov (socket) txuas

15.Direct txuas chaw nres nkoj

16.USB chaw nres nkoj

17.DC them chaw nres nkoj (12.6V charger)

18. LCD

19. Noob

20.Operation khawm

21.Input socket ntawm transmitting clamp

22. Lead hlau

23.Tug

24.Connection chaw nres nkoj ntawm A-frame fault locator(optional)

25.Probe (yeem)

26.Detector (yeem)
